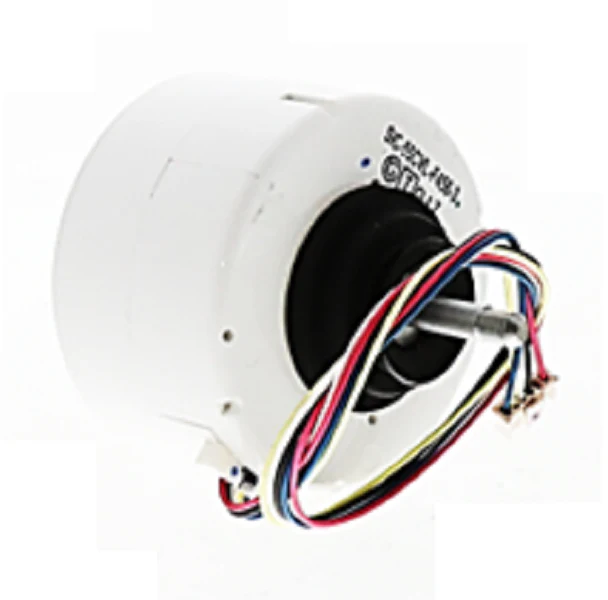

Mitsubishi Electric E22C92300 Motor
The Mitsubishi Electric E22C92300 is an OEM 340VDC 56W 8-pole fan motor engineered for high-performance air circulation within specific Mitsubishi HVAC systems. As a critical direct current (DC) motor component, this 8-pole assembly is designed to provide precise torque management and quiet rotational motion for indoor blower wheels or industrial ventilation assemblies. Because it operates on a 340VDC power supply, it offers superior energy efficiency compared to standard AC alternatives, allowing for variable speed control to match building load requirements.
For technicians performing a motor replacement, the E22C92300 serves as a direct successor to the E12C92300, ensuring full compatibility with existing mounting brackets and wire harnesses. The 8-pole internal configuration minimizes electromagnetic noise and vibration, which is essential for maintaining strict decibel levels in residential and commercial environments. When installing, ensure the shaft alignment matches the blower wheel set screw position to prevent eccentric loading on the motor bearings. This genuine HVAC replacement part ensures the system maintains its original SEER ratings and airflow specifications.
Key Benefits- OEM Compatibility: Designed as a drop-in replacement for the Mitsubishi E12C92300, eliminating the need for field modifications.
- 8-Pole Efficiency: Provides smoother commutation and higher torque-to-weight ratios for consistent airflow performance.
- DC Voltage Precision: Operates at 340VDC to facilitate advanced variable speed modulation and reduced energy consumption.
- Industrial Build Quality: Built to withstand continuous 24/7 operation in demanding cooling and ventilation applications.
Is the E22C92300 compatible with my specific indoor unit model?
This motor is used across various Mitsubishi Electric series; however, you should always verify the part number against your unit's service manual or check for the E12C92300 legacy number to confirm a match.
Does this motor include the fan blade or blower wheel?
No, the E22C92300 is the motor assembly only. It is designed to be paired with your existing OEM fan components or HVAC blower wheels.
Can I test this motor using a standard AC voltmeter?
No, this is a 340VDC 56W motor. Attempting to test or power this component with AC voltage will result in immediate failure of the internal drive circuitry.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
