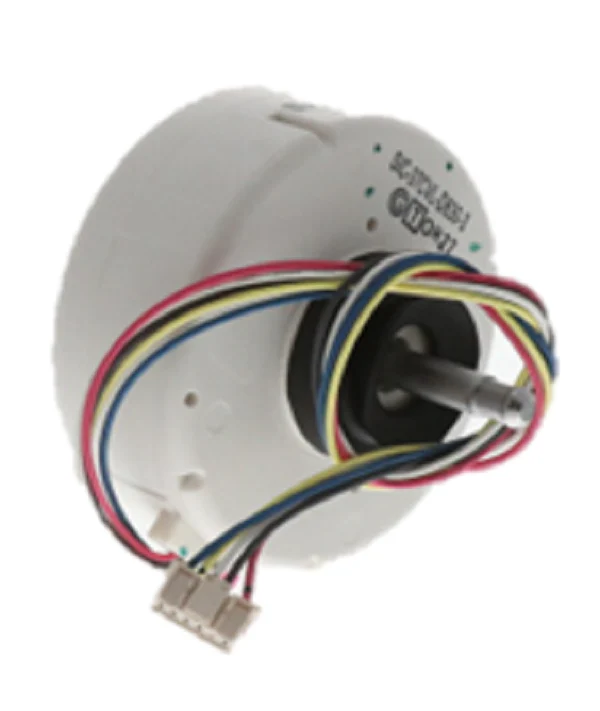

Mitsubishi Electric E22C24300 Motor
The Mitsubishi Electric E22C24300 Motor is a high-performance DC fan motor engineered specifically for multi-zone and ductless mini-split indoor units. Operating within a 280-340VDC range at 30W, this 8-pole brushless motor is critical for precise variable speed control and maintaining static pressure in Mitsubishi Mr. Slim and City Multi series equipment. As a genuine OEM replacement fan motor, it ensures proper communication between the fan board and the motor housing, preventing the common "indoor fan motor error" codes often triggered by non-compliant aftermarket alternatives. This motor facilitates quiet, vibration-free operation while maximizing the SEER rating of the heat pump or cooling system by delivering consistent airflow across the evaporator coil.
Technical Benefits for Contractors:
- Direct OEM Fit: Ensures correct shaft length and wiring harness pin-out for rapid swap-outs without field modifications.
- Variable Speed Efficiency: The 30W 8P design supports precise RPM modulation, essential for maintaining dehumidification and heat transfer rates.
- High-Voltage DC Stability: Rated for 280-340VDC to handle the power output fluctuations common in inverter-driven HVAC systems.
- Long-Term Reliability: Built with high-grade bearings to withstand high-duty cycles in residential and commercial split systems.
Common Technical Questions:
Is the E22C24300 compatible with MSZ and MXZ series units?
Yes, this motor is a standard replacement for many MSZ-GE and MSZ-FE wall-mounted units. Always cross-reference the part number found on the motor label or the unit's service manual to ensure the correct harness connection.
What causes a Mitsubishi DC motor to fail?
Most failures result from moisture ingress at the connector or electrical surges from a failing indoor power board. If the fan blade is stiff or there is an audible grinding, the internal bearings have likely reached the end of their service life.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
