Mitsubishi Electric E22A49452 Control Board

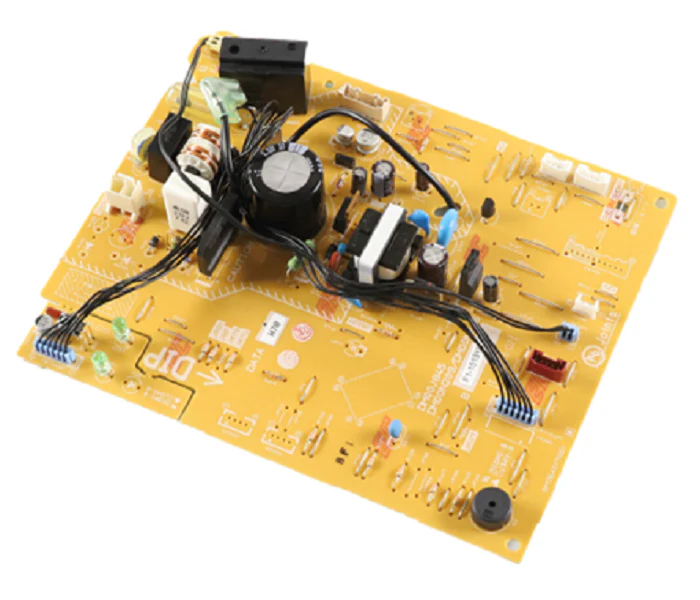

The Mitsubishi Electric E22A49452 Control Board is a critical replacement PC control board designed for specific Mitsubishi mini-split indoor units, including various configurations of the MS-series. As a genuine OEM HVAC replacement part, this module manages core system logic, including fan motor speeds, thermistor inputs, and communication between the indoor unit and the outdoor condenser. For technicians troubleshooting Mitsubishi heat pump fault codes or intermittent communication failures, verifying the E22A49452's integrity is essential. This printed circuit board is engineered to precise electrical tolerances, ensuring stable signal processing and protecting sensitive downstream components from voltage fluctuations. Installing this indoor unit control board restores the factory-specified cooling and heating sequences, maintaining the high-efficiency performance expected from Mitsubishi Electric HVAC systems. Ensure all power is disconnected and proper ESD protocols are followed during the swap to prevent static damage to the microprocessors.
Key Benefits:
- Direct OEM Compatibility: Ensures seamless integration with existing Mitsubishi electric wiring harnesses and sensors.
- Logic Optimization: Restores precise modulation for inverter-driven compressors and multi-speed indoor blowers.
- Reliable Signal Processing: Minimizes communication errors between line-voltage and low-voltage control circuits.
- Simplified Installation: Standardized mounting footprints and plug-and-play terminal connections for faster field service.
Common Questions:
How do I know if the E22A49452 control board is faulty?
Common indicators include a completely unresponsive indoor unit, specific LED blink codes on the diagnostic display, or a failure to engage the indoor fan motor despite receiving power. Always test the fuse and check for scorched traces on the board before replacement.
Is this control board compatible with all MSZ models?
No, this part is specific to certain revisions of the MS, MSY, and MSZ series. You must verify part number compatibility against the serial number of your specific indoor unit to ensure the firmware matches your system's requirements.
Does this board require programming in the field?
This HVAC circuit board comes pre-programmed with the necessary factory logic. However, technicians should ensure that any existing jumper settings or dip switch configurations on the old board are replicated on the new E22A49452 to match the specific installation environment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
