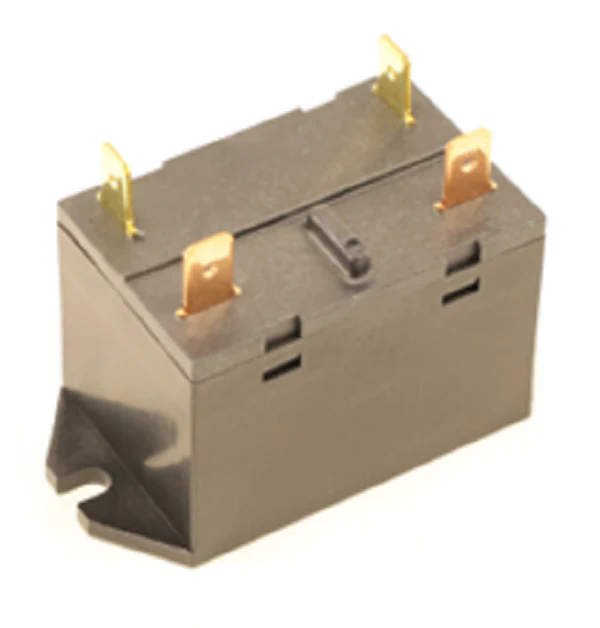

Mitsubishi Electric E22A49340 Relay
The Mitsubishi Electric E22A49340 Relay is a specialized 120V SPST relay engineered for rigorous switching applications within HVAC indoor blower motors and terminal equipment. This high-reliability component serves as a direct OEM replacement to ensure correct control board communication and power distribution. Designed to handle inductive loads without premature contact arcing, the E22A49340 provides the precise switching capacity required for MSY and MSZ series wall-mounted units. As a veteran technician knows, maintaining the integrity of the low-voltage control circuit is critical for preventing diagnostic error codes. This relay features a robust coil resistance profile and high-grade switching contacts to maintain stable thermal management during extended operation cycles. Utilizing this specific Mitsubishi OEM part guarantees proper pin alignment and voltage compatibility, reducing installation time and preventing the secondary failures often associated with generic aftermarket relays.
Technical Specifications & Benefits
- Direct OEM Compatibility: Specifically designed for Mitsubishi Electric mini-split indoor units to ensure seamless integration with the existing PCB.
- 120V SPST Configuration: Provides reliable single-pole single-throw logic for dedicated motor or heater element control.
- Enhanced Contact Life: Built to withstand high inrush current typical of blowers and fan motors.
- Compact Footprint: Engineered for tight tolerances on control boards, ensuring easy field replacement during service calls.
Common Installation Questions
What are the symptoms of a failing E22A49340 relay?
Common signs include the indoor fan motor failing to engage despite a call for cooling/heating or the indoor unit displaying a communication error code related to the fan circuit.
Is this relay compatible with non-Mitsubishi systems?
While this is a standard 120V SPST relay, it is indexed specifically for Mitsubishi Electric MSZ/MSY series chassis. Verification of the pin configuration and coil voltage is mandatory before attempting use in other equipment.
Can I test this relay with a multimeter?
Yes, technicians should check for coil continuity and verify that the normally open (NO) contacts close properly when the 120V coil is energized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
