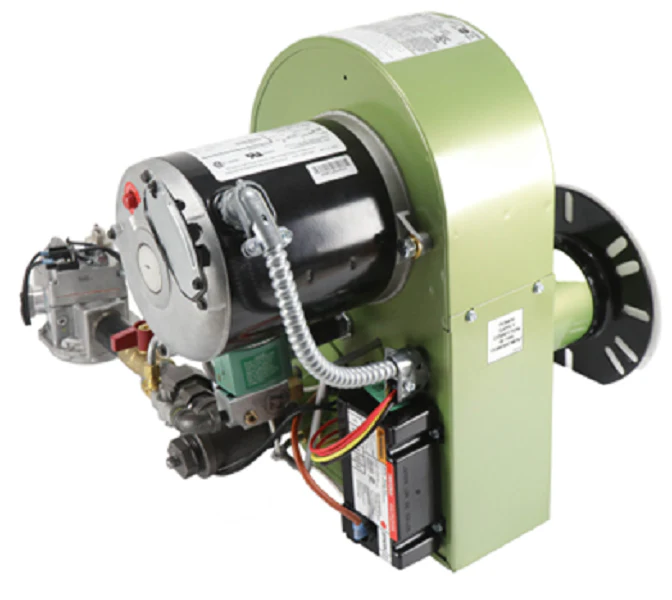

Midco International RE4700BA Burner Assembly
The Midco International RE4700BA Burner Assembly is a high-performance Economite power gas burner engineered for versatility across demanding commercial and industrial applications. Designed for maximum operational efficiency, this unit features a retention head design that creates a compact, concentrated flame pattern, optimizing heat transfer to the exchanger surfaces and reducing oxygen consumption. With a firing range between 230,000 and 700,000 BTU/hr, it supports both natural gas and propane configurations (7.0" to 14.0" W.C. required). The assembly includes a 1/6 HP blower motor and an integrated 24V intermittent pilot ignition system, ensuring reliable light-offs even under variable draft conditions. The universal mounting flange and 4-inch nozzle with an 8-inch insertion depth allow for straightforward installation into rack ovens, commercial boilers, and process heating equipment. For veteran contractors, the bi-directional manifold and durable sheet metal construction offer a reliable solution for streamlining inventory and ensuring consistent heat distribution in heavy-duty HVACR environments.
- High-Efficiency Combustion: Patent-pending burner head design concentrates the flame for superior heat exchanger coverage.
- Versatile Application Range: Ideal for food service equipment, space heating, and commercial pressure washers.
- Simplified Installation: Features a universal mounting flange and a compact footprint for tight mechanical rooms.
- Robust Field Performance: Built with high-grade sheet metal to withstand high-volume production and industrial wear.
Common Questions
What is the primary power requirement for this assembly?
The burner operates on a 115V single-phase power supply, while the internal ignition control module and primary safety circuits utilize a 24V standard transformer.
How do I troubleshoot a flame lockout on the RE4700BA?
Lockouts typically occur if the flame sensor fails to detect a signal of at least 0.7 DC microamps within the 15-second ignition trial. Check for soot buildup on the spark rod or cracked ceramic insulators, and ensure the gas pressure is within the specified 7.0" to 14.0" W.C. range.
Can this burner be converted between natural gas and LP?
Yes, the RE4700BA is compatible with both fuel types; however, proper orifices and regulator adjustments must be applied by a qualified technician to match the specific BTU requirements of the equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,594.84
-65%$2,594.84
$908.19Midco International RE4700BA Burner Assembly
The Midco International RE4700BA Burner Assembly is a high-performance Economite power gas burner engineered for versatility across demanding commercial and industrial applications. Designed for maximum operational efficiency, this unit features a retention head design that creates a compact, concentrated flame pattern, optimizing heat transfer to the exchanger surfaces and reducing oxygen consumption. With a firing range between 230,000 and 700,000 BTU/hr, it supports both natural gas and propane configurations (7.0" to 14.0" W.C. required). The assembly includes a 1/6 HP blower motor and an integrated 24V intermittent pilot ignition system, ensuring reliable light-offs even under variable draft conditions. The universal mounting flange and 4-inch nozzle with an 8-inch insertion depth allow for straightforward installation into rack ovens, commercial boilers, and process heating equipment. For veteran contractors, the bi-directional manifold and durable sheet metal construction offer a reliable solution for streamlining inventory and ensuring consistent heat distribution in heavy-duty HVACR environments.
- High-Efficiency Combustion: Patent-pending burner head design concentrates the flame for superior heat exchanger coverage.
- Versatile Application Range: Ideal for food service equipment, space heating, and commercial pressure washers.
- Simplified Installation: Features a universal mounting flange and a compact footprint for tight mechanical rooms.
- Robust Field Performance: Built with high-grade sheet metal to withstand high-volume production and industrial wear.
Common Questions
What is the primary power requirement for this assembly?
The burner operates on a 115V single-phase power supply, while the internal ignition control module and primary safety circuits utilize a 24V standard transformer.
How do I troubleshoot a flame lockout on the RE4700BA?
Lockouts typically occur if the flame sensor fails to detect a signal of at least 0.7 DC microamps within the 15-second ignition trial. Check for soot buildup on the spark rod or cracked ceramic insulators, and ensure the gas pressure is within the specified 7.0" to 14.0" W.C. range.
Can this burner be converted between natural gas and LP?
Yes, the RE4700BA is compatible with both fuel types; however, proper orifices and regulator adjustments must be applied by a qualified technician to match the specific BTU requirements of the equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
