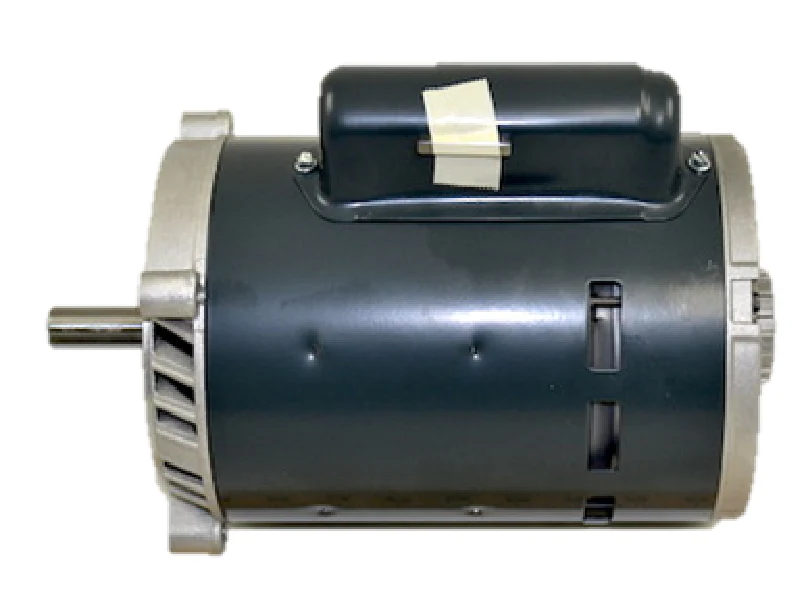

Midco International 843725 Motor
The Midco International 843725 Motor is a high-performance 3/4HP burner motor engineered for demanding commercial and industrial combustion applications. Operating at 3450 RPM, this single phase electric motor provides the high-speed torque necessary for efficient air delivery in Midco Unipower G and GB series burners, specifically A5G and Unipower-G models. Built on a standard NEMA 56C frame, it features a C-face mounting configuration without a base, ensuring a precise mechanical interface with the burner housing. The dual voltage 115/230V capability allows for versatile field wiring, and the permanently sealed ball bearings minimize friction while extending the service life of the HVAC replacement motor in high-temperature environments. For technicians performing a burner motor replacement, this unit offers a drop-in 56C frame motor solution that maintains the precise blower wheel alignment required for optimal fuel-to-air ratios and stable flame patterns.
Key Benefits- Universal Voltage Compatibility: Operates on both 115V and 230V circuits, providing flexibility for various job site power requirements.
- High-Speed Performance: The 3450 RPM rating is optimized for power burners that require consistent static pressure.
- Industrial Durability: Features a rugged 56C frame design with sealed bearings to withstand the rigors of mechanical rooms.
- Direct OEM Fit: Specific compatibility with Midco Unipower G-series eliminates the need for field modifications or bracket adjustments.
What burners are compatible with the Midco 843725?
This motor is the primary specification for Midco International Unipower-G, Unipower-GB, and A5G burner systems requiring a 3/4 HP drive.
Does this motor include a mounting base?
No, this is a C-Face motor designed for direct bolt-on mounting to the burner flange; it does not include a welded or removable foot base.
Can this motor be used for 50Hz applications?
This model is rated for 60Hz operation. Using it on 50Hz systems will result in reduced RPM and may cause overheating or failure of the internal centrifugal switch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Midco International 843725 Motor
The Midco International 843725 Motor is a high-performance 3/4HP burner motor engineered for demanding commercial and industrial combustion applications. Operating at 3450 RPM, this single phase electric motor provides the high-speed torque necessary for efficient air delivery in Midco Unipower G and GB series burners, specifically A5G and Unipower-G models. Built on a standard NEMA 56C frame, it features a C-face mounting configuration without a base, ensuring a precise mechanical interface with the burner housing. The dual voltage 115/230V capability allows for versatile field wiring, and the permanently sealed ball bearings minimize friction while extending the service life of the HVAC replacement motor in high-temperature environments. For technicians performing a burner motor replacement, this unit offers a drop-in 56C frame motor solution that maintains the precise blower wheel alignment required for optimal fuel-to-air ratios and stable flame patterns.
Key Benefits- Universal Voltage Compatibility: Operates on both 115V and 230V circuits, providing flexibility for various job site power requirements.
- High-Speed Performance: The 3450 RPM rating is optimized for power burners that require consistent static pressure.
- Industrial Durability: Features a rugged 56C frame design with sealed bearings to withstand the rigors of mechanical rooms.
- Direct OEM Fit: Specific compatibility with Midco Unipower G-series eliminates the need for field modifications or bracket adjustments.
What burners are compatible with the Midco 843725?
This motor is the primary specification for Midco International Unipower-G, Unipower-GB, and A5G burner systems requiring a 3/4 HP drive.
Does this motor include a mounting base?
No, this is a C-Face motor designed for direct bolt-on mounting to the burner flange; it does not include a welded or removable foot base.
Can this motor be used for 50Hz applications?
This model is rated for 60Hz operation. Using it on 50Hz systems will result in reduced RPM and may cause overheating or failure of the internal centrifugal switch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
