Mepco (Dunham Bush) ML9632 Trap

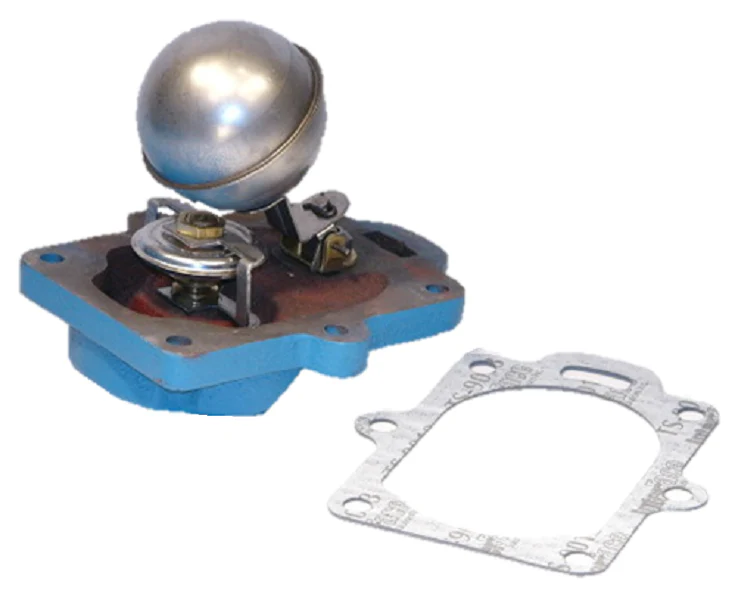

The Mepco (Dunham Bush) ML9632 is a high-performance float and thermostatic (F&T) steam trap head assembly specifically engineered for heavy-duty condensate management in industrial and commercial steam heating systems. This "trap less body" configuration is a complete head assembly designed to drop into your existing 3/4" or 1" trap housings, specifically for the Mepco 40 Series and 44 Series (models 40-215, 40-415, 44-215, and 44-415). By utilizing this pre-assembled steam trap repair kit, contractors can restore system efficiency without the labor-intensive process of replacing the entire cast iron body or piping. The assembly includes a precision-calibrated thermostatic air vent, a durable ball float mechanism, and a new cover gasket to ensure a leak-proof seal. Rated for 15 PSI maximum operating pressure and temperatures reaching 250°F, it effectively handles high-volume condensate and non-condensable gas removal, preventing water hammer and ensuring optimal heat transfer across the steam loop.
- Direct Fit Compatibility: Engineered for seamless integration with Dunham Bush 44-215A, 44-215G, 44-415A, and 44-415G models.
- Efficiency Restoration: Features a dual-orifice design where air is discharged through the thermostatic element while condensate exits via the float-modulated orifice.
- Rugged Internals: Constructed with brass and stainless steel components for superior resistance to corrosion and wire drawing in harsh steam environments.
- Streamlined Maintenance: The cover assembly design allows for a "fast-swap" repair, reducing downtime for critical boiler and radiator systems.
Does this kit include the main trap body?
No, the ML9632 is a "trap less body" assembly, meaning it includes the head, internal mechanisms, and gasket, but is intended for use with your existing 3/4" or 1" in-line trap body.
What is the maximum pressure rating for this 40/44 Series assembly?
This specific head assembly is rated for low-pressure steam applications up to 15 PSI. Always verify your system's operating pressure before installation to prevent float collapse.
Can this be used on 2E or 3C radiator traps?
This assembly is specifically for 40 and 44 Series F&T traps. For older 2E or 3C models with integral seats, a specialized repair cartridge or different head assembly may be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
