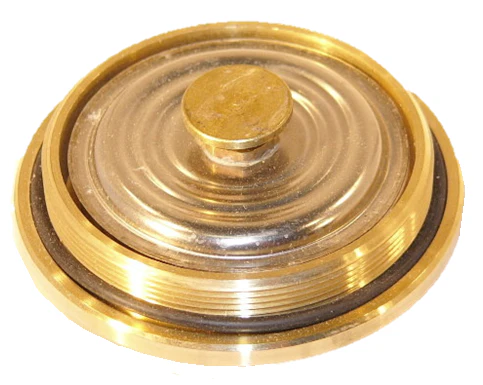

Mepco (Dunham Bush) C5860 Cap & Disc Assembly
When you are dealing with a Dunham Bush radiator trap that has a compromised thermostatic element, the Mepco C5860 Cap & Disc Assembly is the correct OEM solution for a professional rebuild. This kit is specifically engineered for the 3/4 inch 2E series radiator traps found in both residential heating and large-scale commercial HVAC systems. By utilizing a sealed liquid-filled capsule, this assembly provides precise thermal response, opening to discharge air and condensate while closing tight to retain steam once operating temperatures are reached.
For veteran technicians, the C5860 is the standard for maintaining the operational integrity of 2E series thermostatic traps. This assembly includes the heavy-duty cast brass cap and the stainless steel thermostatic disc, ensuring a reliable seal up to a maximum operating pressure of 25 psi and temperatures of 267°F. If you are servicing older Dunham Bush 2E models with integral, non-removable seats, this assembly restores the top-side function essential for efficient steam return main performance without the labor-intensive process of replacing the entire trap body.
Key Benefits:- OEM Compatibility: Precision-fit for all Mepco (Dunham Bush) 2E series radiator traps, including angle, straight-way, and vertical patterns.
- High-Temp Resilience: Rated for high-performance steam applications with a maximum temperature limit of 267°F.
- Steam Retention: The liquid-filled thermostatic element prevents steam loss, optimizing total system fuel economy.
- Simplified Service: Allows for rapid internal restoration of thermostatic steam traps without breaking pipe connections.
- Does this include the seat? No, the C5860 includes the cap and disc only. If the integral seat in your 2E trap is pitted, you may require a separate repair cartridge or a full trap replacement.
- How do I identify a 2E trap? Check the markings on the existing cap; Mepco/Dunham Bush 2E traps are typically 3/4" pipe size and used in radiator or fin-tube applications.
- What is the maximum pressure for this part? This assembly is designed for low-pressure steam systems with a maximum rating of 25 psi.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
