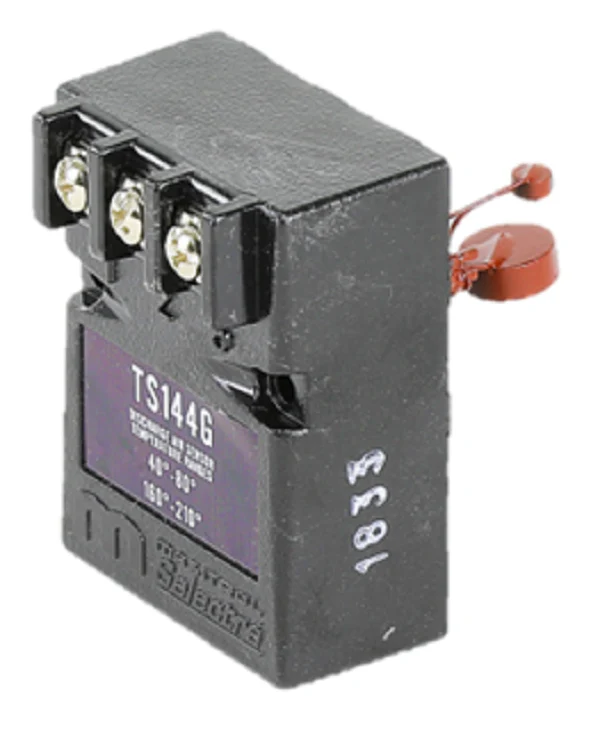

Maxitrol TS144G Temperature Sensor
For veteran HVACR technicians maintaining Selectra Series 44 gas control systems, the Maxitrol TS144G Temperature Sensor is a critical component for high-limit discharge air monitoring. This discharge air temperature sensor is specifically engineered to interface with a mixing tube, providing the electronic gas modulation system with high-precision feedback required for stable burner performance. The TS144G features a distinct dual-range capability, operating with a 40°F to 80°F minimum and a specialized 160°F to 210°F maximum range, making it the correct choice for high-temperature makeup air applications.
When performing a Maxitrol TS144G installation, ensure that the sensor probe is properly positioned within the mixing tube (MT1-12 or similar) to avoid erratic signal issues or hunting. Because this sensor utilizes thermistor-based logic, maintaining clean wiring connections to the A1044R amplifier is essential for accurate voltage-to-temperature translation. This HVAC temperature sensor is a direct replacement for failing units in direct-fired equipment where precise discharge air temperature control is non-negotiable for system safety and efficiency.
Key Benefits- Compatible with Maxitrol A1044R amplifiers used in Series 44 modulating systems.
- Engineered for high-limit applications with a 160°F to 210°F maximum discharge air range.
- Designed for internal mounting within standard HVAC mixing tubes for rapid response.
- Ensures consistent gas flow adjustment by providing linear resistance feedback to the modulator valve.
- Rugged construction withstands the high-velocity airflow and heat cycles of commercial air handlers.
What amplifier is compatible with the TS144G?
The TS144G is specifically designed for use with the Selectra Series 44, typically pairing with the A1044R amplifier. Ensure your amplifier is configured for the 160°F to 210°F max range to maintain calibration.
Can I use this sensor without a mixing tube?
It is not recommended. The sensor is calibrated to work within a mixing tube which protects the element and ensures it senses an average air temperature rather than a localized hot spot.
How do I troubleshoot a suspected TS144G failure?
Technicians should check resistance across the sensor leads. While original resistance varies by ambient temperature, a short or open circuit typically indicates a failed sensor. Always check for electrical interference if signals are erratic.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $198.90
-65%$198.90
$69.61Maxitrol TS144G Temperature Sensor
