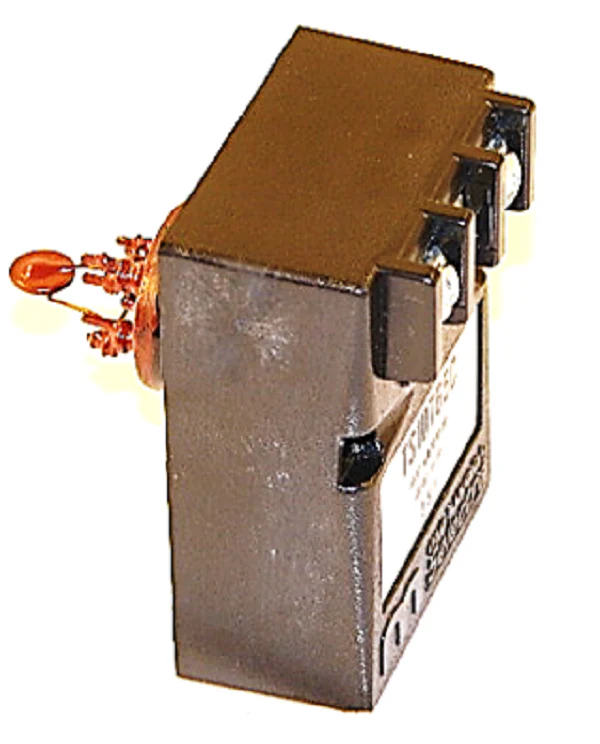

Maxitrol TS10765C Sensor
The Maxitrol TS10765C Sensor is a high-precision inlet air reset sensor designed specifically for integration with Maxitrol Selectra Series 14 electronic gas flame modulation systems. Engineered with a 3.5:1 ratio, this component provides critical inverse discharge air temperature control based on fluctuating intake conditions. When paired with a compatible mixing tube assembly, the sensor detects ambient air temperature upstream of the burner, allowing the Selectra amplifier to automatically adjust the discharge air setpoint. This ensures consistent thermal delivery in make-up air (MUA) units and industrial direct-fired gas heaters. For contractors performing field service or new installs, this sensor is vital for maintaining combustion efficiency and preventing temperature hunting in complex HVAC gas modulation circuits. Its rugged construction resists common industrial contaminants, ensuring reliable analog signal transmission to the modulating gas valve for precise burner firing rates in all seasonal conditions.
Key Benefits for Technicians:
- Matches 3.5:1 ratio reset specifications for precise inversely proportional temperature control.
- Seamlessly replaces existing Maxitrol Selectra sensors in Series 14 and Series 44 applications.
- Optimized for use with Maxitrol mixing tubes to ensure accurate discharge air temperature sensing.
- Reduces fuel consumption by dynamically adjusting burner output based on inlet air temperature.
- Simplifies HVAC troubleshooting by providing stable resistance values for Selectra amplifier diagnostics.
Common Technical Questions:
What is the purpose of the 3.5:1 ratio in this sensor?
The 3.5:1 ratio dictates that for every 3.5-degree change in inlet air temperature, the system will adjust the discharge air temperature by 1 degree in the opposite direction, maintaining thermal equilibrium in the space.
Is the TS10765C compatible with all Maxitrol systems?
This sensor is specifically calibrated for Selectra Series 14 systems. Always verify the ratio requirement (A, B, or C models) against the original equipment manufacturer (OEM) submittals for the specific make-up air unit.
How should this sensor be installed for the best results?
Install the TS10765C in a mixing tube located in the intake air duct, upstream of the burner. Ensure control wiring is run in separate conduit from high-voltage lines to prevent electrical interference.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $87.64
-65%$87.64
$30.67Maxitrol TS10765C Sensor
The Maxitrol TS10765C Sensor is a high-precision inlet air reset sensor designed specifically for integration with Maxitrol Selectra Series 14 electronic gas flame modulation systems. Engineered with a 3.5:1 ratio, this component provides critical inverse discharge air temperature control based on fluctuating intake conditions. When paired with a compatible mixing tube assembly, the sensor detects ambient air temperature upstream of the burner, allowing the Selectra amplifier to automatically adjust the discharge air setpoint. This ensures consistent thermal delivery in make-up air (MUA) units and industrial direct-fired gas heaters. For contractors performing field service or new installs, this sensor is vital for maintaining combustion efficiency and preventing temperature hunting in complex HVAC gas modulation circuits. Its rugged construction resists common industrial contaminants, ensuring reliable analog signal transmission to the modulating gas valve for precise burner firing rates in all seasonal conditions.
Key Benefits for Technicians:
- Matches 3.5:1 ratio reset specifications for precise inversely proportional temperature control.
- Seamlessly replaces existing Maxitrol Selectra sensors in Series 14 and Series 44 applications.
- Optimized for use with Maxitrol mixing tubes to ensure accurate discharge air temperature sensing.
- Reduces fuel consumption by dynamically adjusting burner output based on inlet air temperature.
- Simplifies HVAC troubleshooting by providing stable resistance values for Selectra amplifier diagnostics.
Common Technical Questions:
What is the purpose of the 3.5:1 ratio in this sensor?
The 3.5:1 ratio dictates that for every 3.5-degree change in inlet air temperature, the system will adjust the discharge air temperature by 1 degree in the opposite direction, maintaining thermal equilibrium in the space.
Is the TS10765C compatible with all Maxitrol systems?
This sensor is specifically calibrated for Selectra Series 14 systems. Always verify the ratio requirement (A, B, or C models) against the original equipment manufacturer (OEM) submittals for the specific make-up air unit.
How should this sensor be installed for the best results?
Install the TS10765C in a mixing tube located in the intake air duct, upstream of the burner. Ensure control wiring is run in separate conduit from high-voltage lines to prevent electrical interference.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
