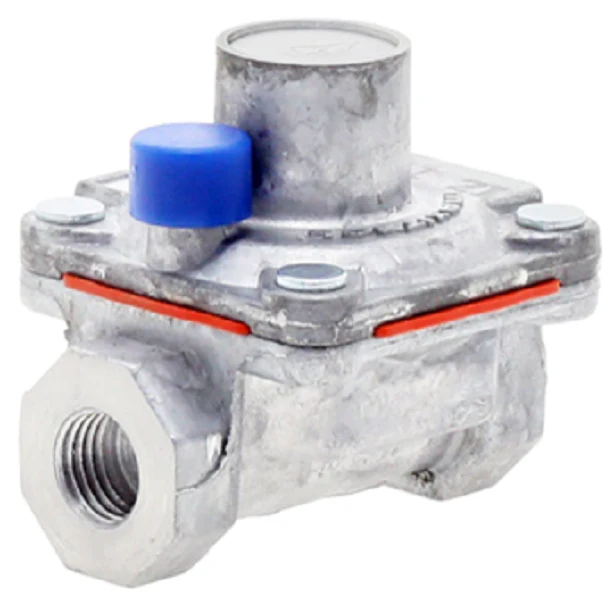

Maxitrol RV12LTF-L3L3-0004 Regulator
The Maxitrol RV12LTF-L3L3-0004 is a specialized appliance gas pressure regulator from the proven RV Series poppet design. Engineered for main burner and pilot load applications, this Maxitrol gas regulator features a 3/16-inch Loxit connection and is specifically calibrated for a 4" WC factory set outlet pressure. Designed without an adjustment screw to maintain fixed pressure specifications, it utilizes a rubber seat poppet to ensure a positive seal at low flow rates, making it an essential component for cooking appliances, barbecues, and hearth products.
Built with a die-cast aluminum housing, the RV12LTF-L3L3-0004 integrates an integral vent limiting orifice, which eliminates the need for a separate vent line in most jurisdictions. With a 1/2 PSI maximum inlet pressure rating, this OEM replacement regulator provides stable performance across varied fuel gases, including natural gas, LP gas, and LP gas-air mixtures. Its multi-positional mounting capability (with the exception of "D" suffix models) allows for flexible installation in tight appliance cabinets where space and orientation are restricted.
Key Benefits
- Precise Pressure Control: Pre-set to 4" WC fixed outlet to ensure consistent burner performance without the risk of field-adjustment errors.
- Enhanced Safety: The integral vent limiting orifice restricts gas leakage to the atmosphere in the event of diaphragm rupture, complying with ANSI Z21.18/CSA 6.3 standards.
- Extreme Temperature Resilience: Rated for ambient temperatures from -40° to 225°F, ensuring reliability in outdoor grills or high-heat commercial kitchens.
- High-Efficiency Seal: The rubber seat poppet minimizes internal leakage, supporting pilot line stability and efficiency in low-demand scenarios.
Common Questions
Can the outlet pressure be adjusted in the field?
No, the RV12LTF-L3L3-0004 is a non-adjustable regulator. It is factory-calibrated to a 4 inch water column specifically for appliances requiring a fixed manifold pressure.
Is a separate vent line required for this model?
This model features an integral vent limiter (L-type). Under most codes, this allows the regulator to be installed without a vent pipe to the outdoors, provided it is mounted in a well-ventilated area.
What fuel types are compatible with this RV Series regulator?
It is fully compatible with natural gas, manufactured, mixed, and liquefied petroleum (LP) gases, as well as LP gas-air mixtures.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
