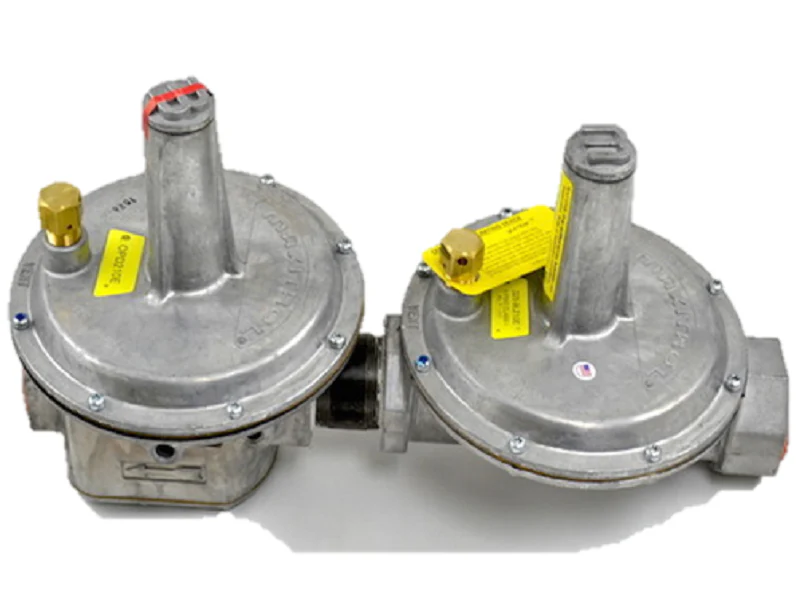

Maxitrol 325-9L210E-2L Regulator
The Maxitrol 325-9L210E-2L is a high-capacity line pressure gas regulator engineered for 2 psi piping systems using natural, manufactured, mixed gases, or LP gas-air mixtures. Featuring a 2" NPT connection and a lever-acting design, this unit is built for precise pressure control in commercial and industrial combustion applications. It handles a 5 PSI max inlet pressure and provides a stable 7-11" w.c. outlet pressure range. This certified gas regulator includes an integrated Overpressure Protection Device (OPD) and factory-installed vent limiters, eliminating the need for vent piping to the outdoors when local codes permit. With a 2,250,000 BTU/hr max capacity, it ensures consistent fuel delivery to high-demand appliances, maintaining lock-up and regulating precision even during rapid load changes. This Maxitrol 325 series component is the standard for contractors requiring the best 2 inch gas regulator for reliable manifold pressure management.
Key Benefits
- Integrated OPD: Ensures downstream safety by maintaining gas flow control even if the primary regulator fails.
- Vent Limiter Included: Simplifies indoor installation by removing the requirement for dedicated vent lines to the atmosphere.
- High Flow Capacity: Rated for up to 2.25 million BTU, making it suitable for large boilers, furnaces, and commercial water heaters.
- Rugged Construction: Features a durable aluminum die-cast body designed for long-term field performance in demanding HVACR environments.
- Multi-Positional Mounting: Allows for flexible installation in tight mechanical rooms, provided the vent limiter remains upright.
Common Questions
Can the Maxitrol 325-9L210E-2L be installed outdoors?
Yes, but the vent limiter must be replaced with a vent protector to prevent moisture and debris from entering the atmospheric vent hole.
Is this regulator suitable for propane (LP) applications?
Yes, this model is compatible with LP gas-air mixtures, provided the inlet pressure does not exceed the 5 PSI rating.
Does this unit require a separate overpressure shutoff valve?
No, the 210E designation signifies it is a certified Overpressure Protection Device (OPD) compliant with ANSI Z21.80/CSA 6.22 standards.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,347.23
-65%$1,347.23
$471.53Maxitrol 325-9L210E-2L Regulator
The Maxitrol 325-9L210E-2L is a high-capacity line pressure gas regulator engineered for 2 psi piping systems using natural, manufactured, mixed gases, or LP gas-air mixtures. Featuring a 2" NPT connection and a lever-acting design, this unit is built for precise pressure control in commercial and industrial combustion applications. It handles a 5 PSI max inlet pressure and provides a stable 7-11" w.c. outlet pressure range. This certified gas regulator includes an integrated Overpressure Protection Device (OPD) and factory-installed vent limiters, eliminating the need for vent piping to the outdoors when local codes permit. With a 2,250,000 BTU/hr max capacity, it ensures consistent fuel delivery to high-demand appliances, maintaining lock-up and regulating precision even during rapid load changes. This Maxitrol 325 series component is the standard for contractors requiring the best 2 inch gas regulator for reliable manifold pressure management.
Key Benefits
- Integrated OPD: Ensures downstream safety by maintaining gas flow control even if the primary regulator fails.
- Vent Limiter Included: Simplifies indoor installation by removing the requirement for dedicated vent lines to the atmosphere.
- High Flow Capacity: Rated for up to 2.25 million BTU, making it suitable for large boilers, furnaces, and commercial water heaters.
- Rugged Construction: Features a durable aluminum die-cast body designed for long-term field performance in demanding HVACR environments.
- Multi-Positional Mounting: Allows for flexible installation in tight mechanical rooms, provided the vent limiter remains upright.
Common Questions
Can the Maxitrol 325-9L210E-2L be installed outdoors?
Yes, but the vent limiter must be replaced with a vent protector to prevent moisture and debris from entering the atmospheric vent hole.
Is this regulator suitable for propane (LP) applications?
Yes, this model is compatible with LP gas-air mixtures, provided the inlet pressure does not exceed the 5 PSI rating.
Does this unit require a separate overpressure shutoff valve?
No, the 210E designation signifies it is a certified Overpressure Protection Device (OPD) compliant with ANSI Z21.80/CSA 6.22 standards.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
