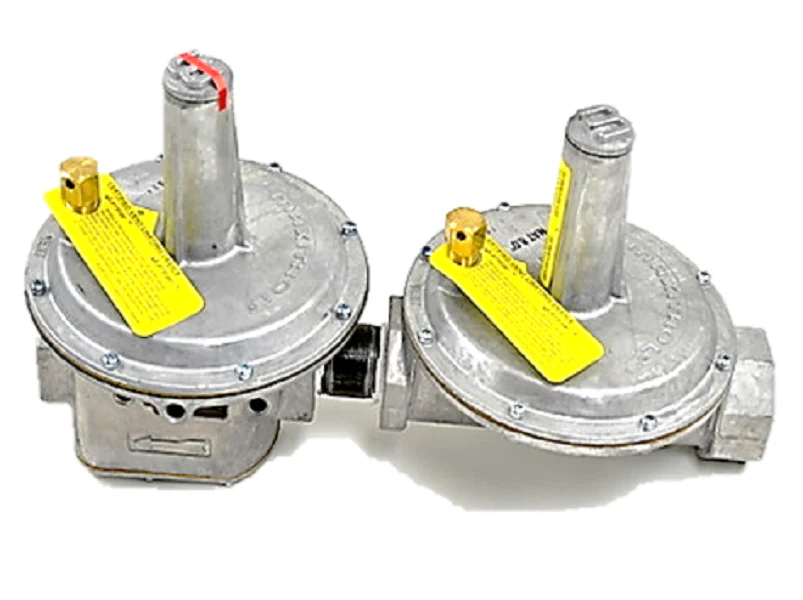

Maxitrol 325-9L210E-1 1/2L Regulator
The Maxitrol 325-9L210E-1 1/2L Regulator is a high-capacity line pressure gas regulator engineered for 5 PSI piping systems, featuring a 1 1/2-inch NPT connection. Designed specifically for commercial and industrial gas distribution, this lever acting design with OPD (Overpressure Protection Device) ensures precise control from full flow down to pilot flow on natural gas and LP systems. With a substantial 2,250,000 BTU/hr max capacity, it effectively manages high-volume loads while maintaining a stable 7-11" w.c. outlet pressure range. This model is ANSI Z21.80/CSA 6.22 certified for use in piping systems like CSST or black pipe, and includes a factory-installed vent limiter to eliminate the need for external vent piping in indoor horizontal installations. Expertly crafted for positive dead-end lockup, this high-flow gas regulator is the professional standard for reducing pounds of pressure to appliance-level inches, optimizing performance for boilers, water heaters, and large furnaces.
Key Benefits- System Precision: Lever-acting linkage provides superior regulation and positive dead-end lockup for maximum safety.
- Integrated OPD: Factory-assembled overpressure protection device limits downstream pressure during unexpected system failures.
- Installation Flexibility: The certified vent limiter allows for indoor mounting without the labor-intensive requirement of running vent lines to the outdoors.
- High Load Handling: Rated for up to 2.25 million BTUs, making it a reliable choice for heavy-duty commercial gas applications.
- Fuel Versatility: Fully compatible with natural, manufactured, mixed, and liquefied petroleum (LP) gases.
- Can this regulator be mounted in any orientation? When utilizing the vent limiter, the unit must be mounted in a horizontal upright position to ensure the ball check mechanism functions correctly.
- Is this suitable for outdoor use? This specific configuration is optimized for indoor horizontal piping. For outdoor installations, a vent protector (such as the 13A25) should be used instead of a limiter.
- Does this replace an appliance regulator? No, this is a line pressure regulator intended to be installed upstream of equipment that is already equipped with an appliance regulator.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
