Maxitrol 325-7AL210D-1 1/2 Regulator

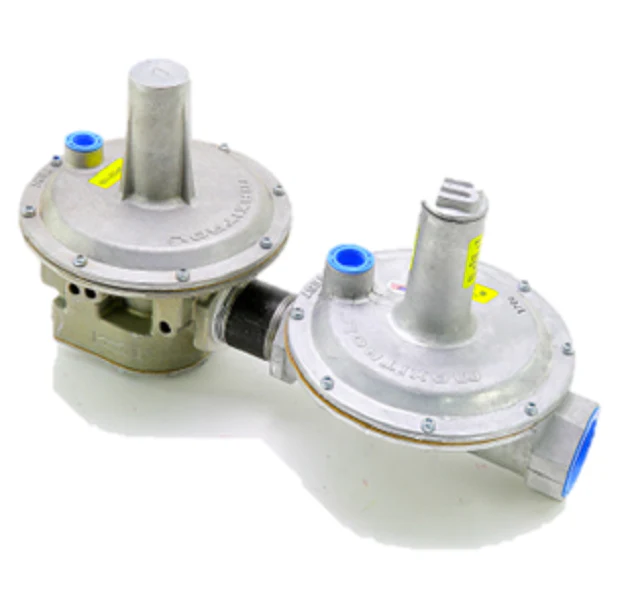

The Maxitrol 325-7AL210D-1 1/2 is a high-capacity certified line pressure gas regulator engineered for 5 PSI piping systems, specifically designed for applications requiring precise dead-end lockup. This 1 1/2" NPT unit features a lever-acting design and a factory-preassembled Overpressure Protection Device (OPD), ensuring downstream safety by limiting pressure in the event of a regulator failure. With a maximum capacity of 1,250,000 BTU/hr, it is a standard choice for commercial gas distribution where high flow and reliability are critical. The regulator is versatile for natural gas and propane (LP), handling a maximum inlet pressure of 5 PSI (34.5 kPa) for natural gas and 2 PSI for LP when used with specific vent limiters. The 7-11"wc outlet pressure range allows for fine-tuned delivery to downstream appliance regulators. Its rugged aluminum housing and nitrile rubber self-aligning valve are built for the demands of mechanical contractors and industrial gas fitters.
Key Benefits:- ANSI Z21.80/CSA 6.22 Certified: Meets rigorous standards for line pressure regulators in 2 PSI and 5 PSI piping systems.
- Integrated OPD: Provides essential overpressure protection, required for installations where supply exceeds 2 PSI.
- 1,250,000 BTU/hr Max Load: High-performance throughput suitable for large commercial boilers and industrial equipment.
- Multi-Gas Compatibility: Approved for use with natural, manufactured, mixed, and liquefied petroleum gases.
- Precise Control: Lever-acting mechanism offers excellent regulation from full capacity down to pilot flows.
- Can this be mounted in any orientation? For the 325-7AL210D series, the regulator and OPD must be installed in a horizontal, upright position to function correctly as a dead-end lockup device.
- Does this require a vent line? When equipped with a Maxitrol vent limiting device (like the 12A49), it can often be installed without a vent line to the outdoors, subject to local codes and indoor installation rules.
- Is this suitable for outdoor use? Standard models are typically intended for indoor use; for outdoor applications, the Imblue Technology (B models) version is usually recommended for corrosion resistance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $608.81
-65%$608.81
$213.08Maxitrol 325-7AL210D-1 1/2 Regulator
The Maxitrol 325-7AL210D-1 1/2 is a high-capacity certified line pressure gas regulator engineered for 5 PSI piping systems, specifically designed for applications requiring precise dead-end lockup. This 1 1/2" NPT unit features a lever-acting design and a factory-preassembled Overpressure Protection Device (OPD), ensuring downstream safety by limiting pressure in the event of a regulator failure. With a maximum capacity of 1,250,000 BTU/hr, it is a standard choice for commercial gas distribution where high flow and reliability are critical. The regulator is versatile for natural gas and propane (LP), handling a maximum inlet pressure of 5 PSI (34.5 kPa) for natural gas and 2 PSI for LP when used with specific vent limiters. The 7-11"wc outlet pressure range allows for fine-tuned delivery to downstream appliance regulators. Its rugged aluminum housing and nitrile rubber self-aligning valve are built for the demands of mechanical contractors and industrial gas fitters.
Key Benefits:- ANSI Z21.80/CSA 6.22 Certified: Meets rigorous standards for line pressure regulators in 2 PSI and 5 PSI piping systems.
- Integrated OPD: Provides essential overpressure protection, required for installations where supply exceeds 2 PSI.
- 1,250,000 BTU/hr Max Load: High-performance throughput suitable for large commercial boilers and industrial equipment.
- Multi-Gas Compatibility: Approved for use with natural, manufactured, mixed, and liquefied petroleum gases.
- Precise Control: Lever-acting mechanism offers excellent regulation from full capacity down to pilot flows.
- Can this be mounted in any orientation? For the 325-7AL210D series, the regulator and OPD must be installed in a horizontal, upright position to function correctly as a dead-end lockup device.
- Does this require a vent line? When equipped with a Maxitrol vent limiting device (like the 12A49), it can often be installed without a vent line to the outdoors, subject to local codes and indoor installation rules.
- Is this suitable for outdoor use? Standard models are typically intended for indoor use; for outdoor applications, the Imblue Technology (B models) version is usually recommended for corrosion resistance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
