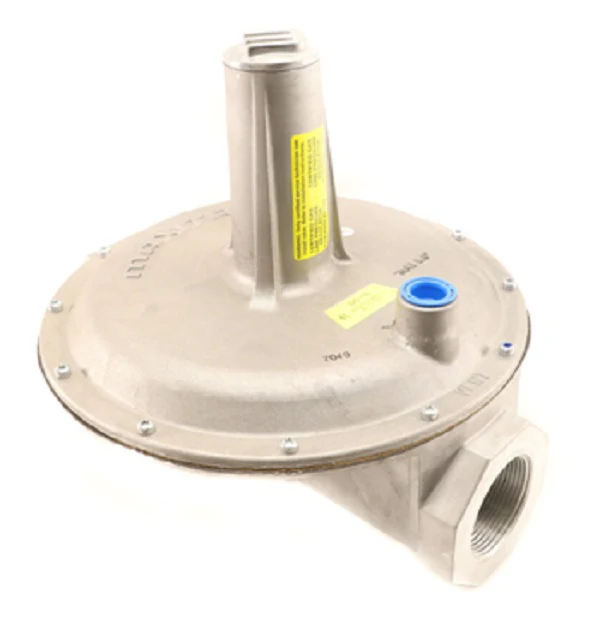

Maxitrol 325-11L-2 1/2 Regulator
The Maxitrol 325-11L-2 1/2 is a high-capacity line pressure gas regulator specifically engineered for 2 PSI piping systems in commercial and industrial HVACR sectors. This 2 1/2" NPT lever-acting regulator manages a massive 4,450,000 BTU/hr max capacity, making it a critical component for large-scale boiler feeds or multi-appliance manifolds. Built with a robust aluminum housing, it provides a 7-11" w.c. outlet pressure range to maintain precise downstream stability. The lever-acting design ensures a positive dead-end lockup, essential for protecting equipment when downstream demand ceases. Certified under ANSI Z21.80/CSA 6.22, this unit is compatible with natural gas, LP, and mixed fuel applications. Field technicians should note that the 325-11L model requires vertical mounting for optimal performance. Whether you are dealing with high-flow burner loads or sensitive pilot flows, this Maxitrol gas regulator provides the high-leverage valve linkage required for dependable pressure reduction and consistent flow control in demanding environments.
Key Benefits- High-Flow Performance: Rated for a maximum individual load of 4,450,000 BTU/hr, supporting heavy industrial gas trains.
- Superior Lockup: Lever-acting linkage mechanism delivers a positive dead-end lockup, preventing pressure creep during off-cycles.
- Wide Compatibility: Suitable for use with natural, manufactured, mixed, liquefied petroleum gases, and LP gas-air mixtures.
- Code Compliance: CSA certified to ANSI Z21.80/CSA 6.22 standards for 2 PSI line pressure regulation.
- Precise Regulation: Accurately maintains a 7" to 11" w.c. set point from full burner demand down to pilot flow.
What is the maximum inlet pressure for the 325-11L-2?
This regulator is rated for a maximum functional inlet pressure of 2 PSI. For systems exceeding 2 PSI, a factory-assembled overpressure protection device (OPD) is required to meet code.
Can this regulator be mounted in any orientation?
Unlike smaller 325 series models, the 325-11L is designed specifically for horizontal pipe runs and must be mounted in an upright position to ensure the lever-acting mechanism functions correctly.
Does this unit include a vent limiter?
Standard 325-11L models typically require a dedicated vent line to the outdoors. If indoor venting is required, check for compatibility with specific Maxitrol vent limiting orifices based on local mechanical codes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
