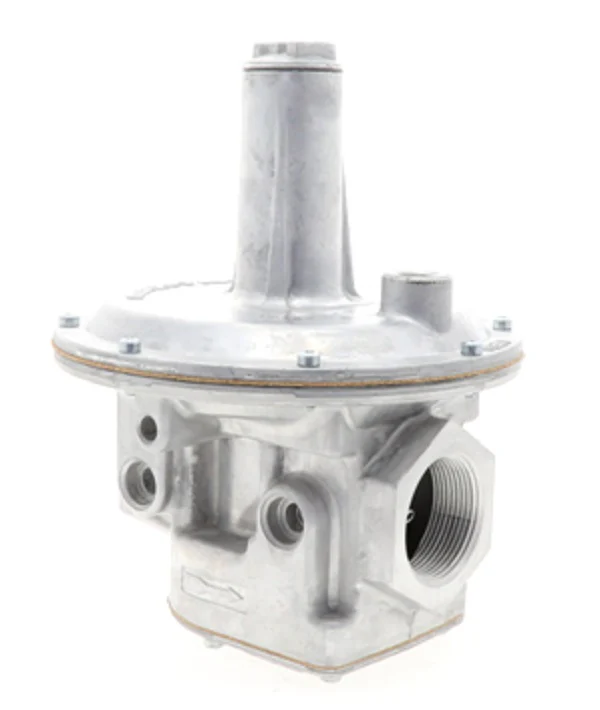

Maxitrol 210D-1 1/2 Regulator
The Maxitrol 210D-1 1-1/2 Gas Regulator is a high-capacity, lock-up style gas pressure regulator engineered for demanding commercial and industrial applications. Designed with a balanced valve design, this unit effectively eliminates inlet pressure sensitivity, ensuring a stable outlet pressure even when upstream conditions fluctuate significantly. This makes it an essential component for gas-fired boilers, steam generators, and industrial furnaces where precise manifold pressure is critical for efficient combustion.
Constructed with a rugged, web-reinforced aluminum alloy housing, the 210D-1 1/2 supports a 10 PSI maximum inlet pressure and comes factory-calibrated for a 3"–8" WC outlet range. The integration of internal dampening mechanisms in the breather outlet and sensing tube actively reduces hunting and "creep," providing superior regulating stability across a broad flow range up to 6,500,000 BTU/hr. This regulator is ANSI Z21.18/CSA 6.3 certified and compatible with natural, manufactured, mixed, and liquefied petroleum (LP) gases.
Key Benefits for Contractors:
- Precise Pressure Control: The balanced valve design maintains a steady set point regardless of inlet pressure fluctuations, preventing appliance over-firing.
- High-Capacity Throughput: Rated for loads up to 6.5 million BTU, making it suitable for large-scale rooftop units and industrial burners.
- Dead-End Lock-Up: Provides positive shut-off at zero flow, a critical requirement for modern high-efficiency gas-fired equipment safety protocols.
- Installation Versatility: Features 1-1/2" NPT threaded connections and is suitable for both indoor and outdoor applications when equipped with a vent protector.
Common Technical Questions:
Can this regulator be mounted in any orientation?
No. For proper operation and to meet safety certifications, the Maxitrol 210D series must be installed in an upright position with the gas flow following the arrow on the casting.
Is this suitable for outdoor use?
Yes, provided it is installed in an upright position. For outdoor protection against debris and moisture, use a Maxitrol 13A15-5 vent protector.
Does it support remote sensing?
The 210D model is compatible with remote sensing applications. For these setups, the internal sensing tube is omitted in favor of external sensing taps for more accurate downstream control in complex piping runs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
