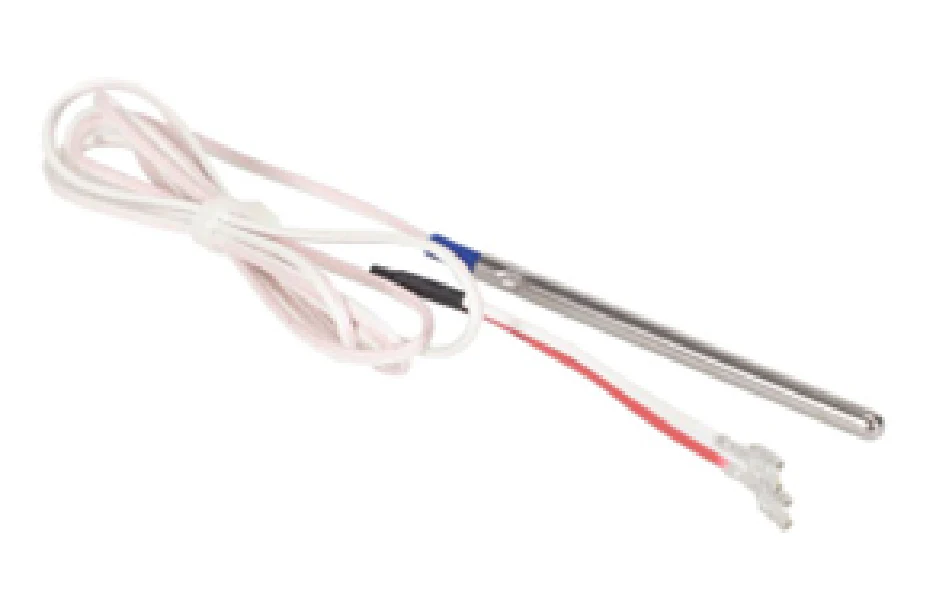

Maxitrol 01724601-001 Sensor
The Maxitrol 01724601-001 Sensor is a precision-engineered OEM replacement sensor specifically designed for PakStat Series I and II electronic thermostats. In industrial HVAC and burner control applications, maintaining accurate thermal feedback is non-negotiable for system safety and efficiency. This thermistor-based probe features a 0.189-inch diameter sensing probe with a 3-inch insertion length, ensuring a rapid response time to temperature fluctuations within the airstream or process environment. Equipped with 48-inch lead wires, this unit offers the necessary slack for secure routing to the control board, preventing tension-related signal loss often seen with shorter, aftermarket alternatives.
When troubleshooting industrial combustion systems or makeup air units, ensuring sensor compatibility with your PakStat temperature control system is critical. This genuine Maxitrol component correlates precisely with the resistance curves required by Series I and II controllers, eliminating the offset errors common in generic sensors. By utilizing OEM temperature control sensors like the 01724601-001, technicians ensure that gas pressure modulation and setpoint accuracy remain within tight tolerances, protecting the heat exchanger and optimizing fuel consumption across high-demand cycles.
Key Benefits for Technicians:
- Exact OEM Fit: Drop-in replacement for Maxitrol PakStat Series I and II, ensuring electrical impedance matching.
- Extended Reach: The 48-inch leads facilitate flexible cabinet mounting and cleaner wire management.
- High Sensitivity: The 3-inch probe provides the surface area required for accurate burn-style HVAC system monitoring.
- Broad Compatibility: Optimized for use with P14A0318 and P64A0318 series electronic thermostats.
- Rugged Build: Engineered to withstand the thermal cycling typical of industrial process control and burner systems.
Common Questions:
How do I check if my PakStat sensor has failed?
Technicians should test the resistance across the leads using a multimeter and compare the readings to the Maxitrol resistance-to-temperature chart; an open circuit or erratic fluctuations usually indicate a failed probe.
Is this sensor compatible with both Series I and Series II boards?
Yes, the Maxitrol 01724601-001 is the standard 0.189-inch probe specified for both PakStat Series I and Series II platforms.
Can I extend the 48-inch lead wires if needed?
While the 48-inch leads are standard, any field extensions should use shielded high-temperature wire and high-quality crimps to prevent thermal resistance shifts from skewing the controller's data.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
