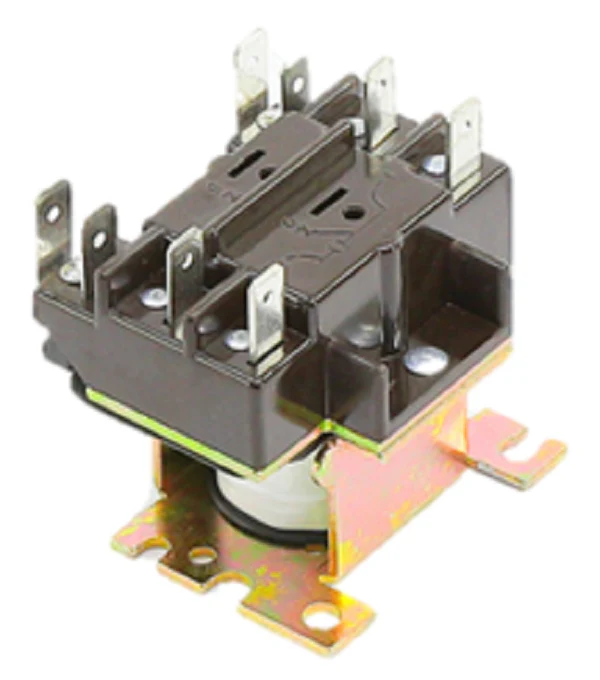

Marvair 50205 Heat Relay
The Marvair 50205 Heat Relay is a mission-critical DPST (Double Pole Single Throw) component specifically engineered for high-demand industrial HVAC heating systems. Designed for direct OEM replacement, this heavy-duty relay utilizes a 24V coil to manage 240V line voltage circuits, providing the necessary isolation between low-voltage thermostat controls and high-amperage heating elements. As a veteran-grade HVAC control relay, the 50205 effectively bridges the communication gap in telecommunications shelters and modular classroom units, where precision temperature management and rapid cycling are standard requirements. Its durable construction ensures stable contact closure, preventing premature pitting or welding under resistive loads. When diagnosing a failed heat relay, technicians will find this unit replaces the #R8222C 1008 series, maintaining the integrity of the original heating sequence of operation and preventing system short-cycling. Integrating this genuine Marvair part into your maintenance routine reduces operational overhead by safeguarding internal components from thermal overstress and ensuring peak HVAC system performance in harsh environments.
Key Benefits for Technicians:
- Optimized Load Switching: Seamlessly manages 240V resistive heating loads using standard 24V control signals.
- High Compatibility: Direct OEM replacement for Marvair and Eubank wall-mounted units, ensuring a perfect mechanical fit and electrical match.
- Industrial-Grade Durability: Built to withstand the high-cycle demands of telecom cooling and industrial heating applications.
- Thermal Safeguarding: Provides precise activation of heating elements to prevent overheating and extend the duty cycle of the furnace or heat pump.
- Simplified Field Troubleshooting: Features standard terminal markings for fast multi-meter continuity testing and rapid HVAC repair.
Common Questions & Answers:
Is the Marvair 50205 a direct substitute for the R8222C series?
Yes, in many Marvair configurations, the 50205 serves as the factory-authorized DPST relay replacement for the R8222C 1008, maintaining identical coil voltage and contact ratings.
How do I confirm if my heat relay has failed?
Check for 24V at the coil terminals. If the coil is energized but the 240V line voltage is not passing through the Normally Open (N.O.) contacts, or if you hear persistent chattering/buzzing, the internal contacts or coil are likely compromised.
Can I use this relay for fan-only applications?
While primarily used for heating elements, this double-pole relay can switch individual motor leads provided the FLA/LRA ratings are within the 240V/24V specified range for the Marvair equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
