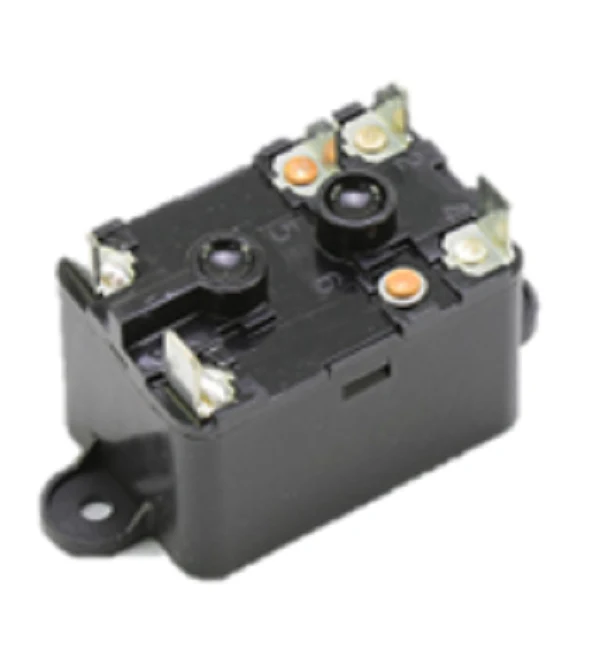

MARS 92370 Relay
The MARS 92370 Relay is a heavy-duty SPDT 24V relay engineered for reliable HVAC fan switching and motor control. Built to handle inductive loads in demanding residential and commercial environments, this switching relay features a 24VAC coil and a high-capacity 25A contact rating. As a veteran-grade power relay, it provides a seamless 24V control interface for line-voltage blowers and circulating pumps. The MARS 92370 is a direct 90-370Q cross reference, making it a "truck stock" essential for professional technicians. Its non-positional, universal mounting bracket and standard 1/4-inch quick-connect terminals simplify field replacement in air handlers and furnace control cabinets. Designed for a 60Hz frequency, this heavy duty fan relay ensures stable operation with a precise 20.4V pick-up and 4.8V drop-out threshold, effectively preventing contact chatter and protecting sensitive downstream components.
Key Benefits- High Current Capacity: Rated for up to 25 Amps, allowing for the switching of heavy motor and fan loads.
- Universal Compatibility: Serves as a standard 90-370Q replacement and replaces most WR/Essex/RBM type 184 relays.
- Field-Ready Design: Equipped with a universal flanged bracket and 0.25-inch quick-connect terminals for fast wiring.
- Quiet Operation: Precision-wound 24V coil minimizes humming and chatter during long-duration duty cycles.
- A2L Compliant: Suitable for use in modern systems utilizing latest-generation refrigerants.
Can I use this SPDT relay in place of an SPST model?
Yes, as long as the coil voltage and contact amperage match. Use the Common (C) and Normally Open (NO) pins, leaving the Normally Closed (NC) pin unused.
Does the mounting orientation matter for the MARS 92370?
No, this relay features a non-positional design, allowing it to be mounted in any orientation within the control box.
What is the difference between the 92370 and a standard cube relay?
The 92370 is a heavy-duty switching relay with higher contact ratings (up to 25A) and a robust bracket for direct panel mounting, unlike lower-amperage plug-in cube relays.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
MARS 92370 Relay
The MARS 92370 Relay is a heavy-duty SPDT 24V relay engineered for reliable HVAC fan switching and motor control. Built to handle inductive loads in demanding residential and commercial environments, this switching relay features a 24VAC coil and a high-capacity 25A contact rating. As a veteran-grade power relay, it provides a seamless 24V control interface for line-voltage blowers and circulating pumps. The MARS 92370 is a direct 90-370Q cross reference, making it a "truck stock" essential for professional technicians. Its non-positional, universal mounting bracket and standard 1/4-inch quick-connect terminals simplify field replacement in air handlers and furnace control cabinets. Designed for a 60Hz frequency, this heavy duty fan relay ensures stable operation with a precise 20.4V pick-up and 4.8V drop-out threshold, effectively preventing contact chatter and protecting sensitive downstream components.
Key Benefits- High Current Capacity: Rated for up to 25 Amps, allowing for the switching of heavy motor and fan loads.
- Universal Compatibility: Serves as a standard 90-370Q replacement and replaces most WR/Essex/RBM type 184 relays.
- Field-Ready Design: Equipped with a universal flanged bracket and 0.25-inch quick-connect terminals for fast wiring.
- Quiet Operation: Precision-wound 24V coil minimizes humming and chatter during long-duration duty cycles.
- A2L Compliant: Suitable for use in modern systems utilizing latest-generation refrigerants.
Can I use this SPDT relay in place of an SPST model?
Yes, as long as the coil voltage and contact amperage match. Use the Common (C) and Normally Open (NO) pins, leaving the Normally Closed (NC) pin unused.
Does the mounting orientation matter for the MARS 92370?
No, this relay features a non-positional design, allowing it to be mounted in any orientation within the control box.
What is the difference between the 92370 and a standard cube relay?
The 92370 is a heavy-duty switching relay with higher contact ratings (up to 25A) and a robust bracket for direct panel mounting, unlike lower-amperage plug-in cube relays.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
