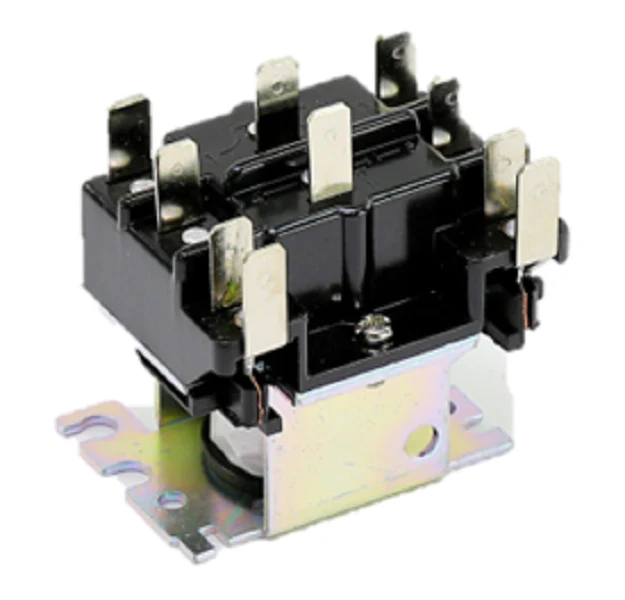

MARS 92341 Relay
The MARS 92341 Relay is a heavy-duty, double pole double throw (DPDT) switching solution designed specifically for HVACR applications. This 120V relay features a universal tab bracket for non-positional mounting, allowing for flexible installation in tight service panels. Rated for 25 Amp resistive and 15 Amp inductive loads at 277 VAC, it provides reliable switching for fans, motors, and heating elements. The coil is engineered for a pick-up voltage of ?96VAC and a drop-out voltage of ?24VAC, ensuring consistent performance despite minor voltage fluctuations. As a direct replacement for WR/Essex/RBM type 184 and 90-341 models, this DPDT 120V relay utilizes standard 0.25-inch quick-connect terminals, making it a staple for contractors performing field service or preventative maintenance on residential and commercial cooling equipment. Its UL and CSA listing confirms it meets rigorous industry safety standards for high-capacity current switching.
Key Benefits- Universal Compatibility: Serves as a standard cross-reference for the popular WR/RBM 90-341 and Essex type 184 relays.
- Heavy-Duty Switching: Handles 25A resistive loads, making it suitable for high-demand fan and motor control.
- Flexible Mounting: Non-positional tab bracket design simplifies installation in various cabinet configurations.
- Standardized Terminals: Equipped with 0.25" quick-connects for rapid replacement and secure wiring.
What is the coil voltage for the MARS 92341?
This model operates with a 110/120 Volt AC coil and is designed to pick up at 96VAC or less.
Can I use this relay to replace a SPDT model?
Yes, a DPDT relay can often replace a Single Pole Double Throw (SPDT) relay by utilizing only one set of contacts, provided the voltage and amperage ratings match the system requirements.
Is this relay A2L refrigerant compliant?
Yes, the MARS 92341 is rated as A2L compliant, making it suitable for newer HVAC systems using mildly flammable refrigerants.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
