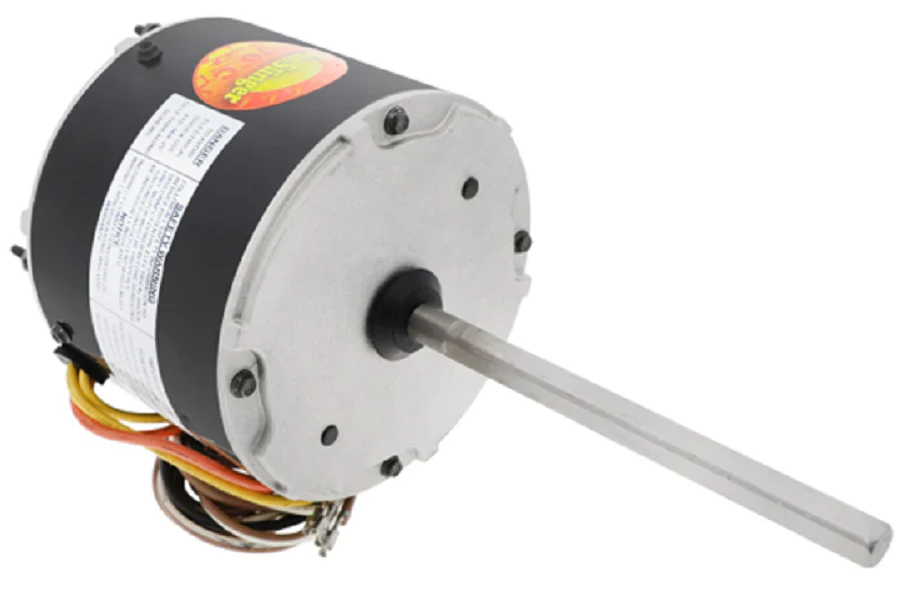

MARS 20836 Motor
The MARS 20836 motor is a purpose-built 460V condenser fan motor designed for high-voltage commercial and industrial applications. This 1/4 HP 1075 RPM unit features a NEMA 48 frame and is engineered for extreme duty cycles in outdoor condensing environments. With Class F insulation and a 70°C ambient rating, it manages heat dissipation effectively, ensuring reliability in high-temperature zones. The TEAO enclosure (Totally Enclosed Air Over) protects internal windings from airborne contaminants while allowing the fan’s airflow to provide necessary cooling for the motor body during operation.
Built for versatile installation, the MARS 20836 supports thru-bolt or band mounting and includes standard Rheem and Trane bolt patterns for direct-fit capability. The ball bearing construction supports all-angle mounting, making it a reliable PSC motor choice for various OEM replacements. This motor features a 1/2-inch diameter shaft with a water slinger to prevent moisture ingress, critical for vertical shaft-up or shaft-down outdoor configurations. For contractors, this condenser fan motor provides a high-reliability solution for systems requiring precise 1075 RPM performance at 460-volt service.
Key Benefits- Extreme Temperature Resilience: Rated for 70°C ambient operation with Class F insulation to handle demanding commercial environments.
- Universal Mounting Flexibility: Supports thru-bolt, band, and specific OEM bolt circles (Rheem/Trane) for faster field installation.
- All-Angle Ball Bearings: Heavy-duty ball bearings allow the motor to be mounted in any orientation without premature failure.
- Moisture Protection: Features a shaft water slinger and TEAO enclosure to safeguard against rain and debris during outdoor use.
What capacitor is required for this motor?
The MARS 20836 requires a 7.5 MFD / 440V capacitor (not included) for proper start-up and running torque.
Can this motor be used in 230V systems?
No, this is a dedicated 460V single-phase motor. Applying lower voltage will result in motor failure and potential electrical hazards.
Is the rotation reversible?
Yes, this motor is electrically reversible, allowing you to match the specific blade pitch of the existing condenser fan.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
