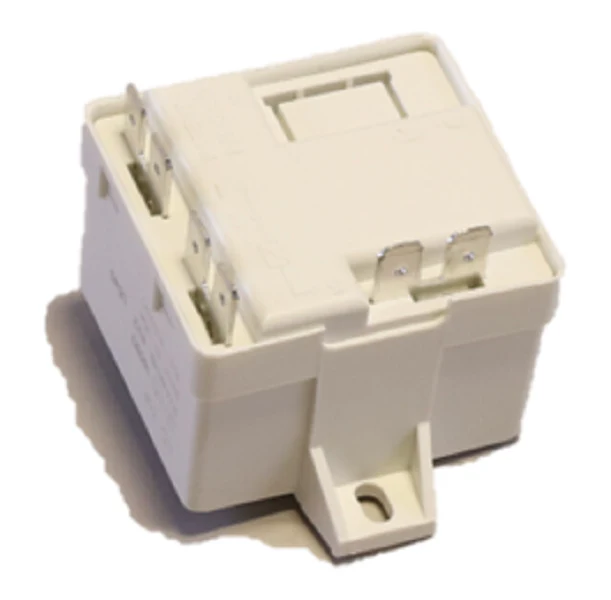

MARS 16090 Relay
The MARS 16090 Relay is a heavy-duty, motor-starting potential relay engineered for high-demand HVACR applications. Operating within a pick-up voltage range of 195-224V, this component is a direct technical replacement for the 3ARR1 series and specifically serves as an OEM replacement for Copeland hermetic compressors. With a robust 35 amp contact rating and a continuous voltage capacity of 420V, it provides the precise switching required to assist large single-phase compressors during the start cycle.
Designed for professional installation, the MARS 16090 features an integrated tab-type mounting bracket and standard quick-connect terminals to streamline field replacement. The relay is A2L compliant and UL/CSA listed, ensuring it meets current industry safety standards for modern refrigerants. Its drop-out voltage of 60-125V ensures reliable disconnection once the motor reaches operational speed, protecting the start capacitor from prolonged electrification.
Key Benefits
- Direct Compatibility: Engineered as a drop-in potential relay cross-reference for Copeland (940-0001-35) and various GE 3ARR3-series models.
- High Current Capacity: The 35AMP relay rating handles the high inrush currents typical of 1/3 HP to larger commercial compressors.
- Industrial Build: Features a durable plastic housing with an integrated bracket, eliminating the need for separate mounting hardware.
- Standardized Wiring: Equipped with 1/4-inch quick-connect terminals for secure, vibration-resistant electrical connections.
Common Questions
What are the pick-up and drop-out specifications for the MARS 16090?This relay is calibrated for a pick-up voltage between 195V and 224V, with a maximum hold voltage of 420V and a drop-out range of 60V to 125V.
Can this relay replace a Trane RLY3715 or GE 3ARR3KC6W5?Yes, the MARS 16090 is a certified cross-reference for the GE 3ARR3KC6W5 and the Trane RLY3715, as well as the RVA4AH6L models used in many hermetic systems.
Is this relay compatible with A2L refrigerants?Yes, this part is A2L compliant, making it suitable for use in newer systems utilizing mildly flammable refrigerants as per current environmental regulations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
