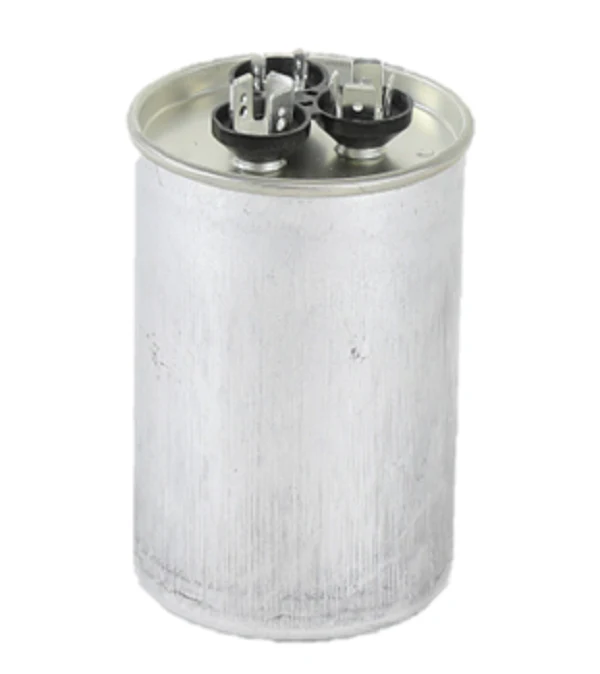

MARS 12823 Run Capacitor
The MARS 12823 Run Capacitor is a high-performance dual run capacitor designed for demanding HVACR applications requiring a 70/5 MFD rating at 440 VAC. Engineered to withstand rigorous duty cycles, this round metal case capacitor is a reliable replacement for failing start or run components in residential and commercial condensing units. It features a non-PCB, biodegradable oil fill and is rated for up to 60,000 hours of service life under standard operating conditions. The MARS 12823 is protected by an internal pressure sensitive interrupter, ensuring the circuit opens safely if internal pressure builds. Designed for compatibility with various PSC motor and compressor configurations, it handles both 370V and 440V applications, providing the necessary phase shift for optimal torque and energy efficiency. The physical dimensions and 1/4-inch quick-connect terminals allow for a straightforward drop-in installation during routine maintenance or emergency repairs.
Technical Specifications and Key Benefits- Dual capacitance: 70+5 Microfarad (MFD) for simultaneous compressor and fan motor support.
- Voltage rating: Rated for 440 Volts AC, suitable for high-voltage heavy-duty cycles.
- Safety standard: UL/CSA recognized with an integrated pressure sensitive interrupter.
- Operating temperature: High-grade construction rated for -40°C to 70°C environments.
- Build quality: Corrosion-resistant round aluminum housing protects against harsh outdoor elements.
Can I use a 440V capacitor to replace a 370V capacitor?
Yes, a 440VAC capacitor like the MARS 12823 is a superior upgrade for a 370VAC unit, as it offers a higher voltage tolerance. Never substitute a lower voltage capacitor for a higher voltage requirement.
What are the signs that a 70/5 MFD capacitor has failed?
Common indicators include a bulging or "mushroomed" top, leaking oil, a humming compressor that fails to start, or the outdoor fan motor not reaching full RPM.
Is the MARS 12823 compatible with different brands?
This is a universal HVAC replacement part. As long as the capacitance (70+5 MFD) and voltage (440V or 370V) match the original OEM specs, this unit will function correctly across various equipment brands.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $17.36
-65%$17.36
$6.08MARS 12823 Run Capacitor
The MARS 12823 Run Capacitor is a high-performance dual run capacitor designed for demanding HVACR applications requiring a 70/5 MFD rating at 440 VAC. Engineered to withstand rigorous duty cycles, this round metal case capacitor is a reliable replacement for failing start or run components in residential and commercial condensing units. It features a non-PCB, biodegradable oil fill and is rated for up to 60,000 hours of service life under standard operating conditions. The MARS 12823 is protected by an internal pressure sensitive interrupter, ensuring the circuit opens safely if internal pressure builds. Designed for compatibility with various PSC motor and compressor configurations, it handles both 370V and 440V applications, providing the necessary phase shift for optimal torque and energy efficiency. The physical dimensions and 1/4-inch quick-connect terminals allow for a straightforward drop-in installation during routine maintenance or emergency repairs.
Technical Specifications and Key Benefits- Dual capacitance: 70+5 Microfarad (MFD) for simultaneous compressor and fan motor support.
- Voltage rating: Rated for 440 Volts AC, suitable for high-voltage heavy-duty cycles.
- Safety standard: UL/CSA recognized with an integrated pressure sensitive interrupter.
- Operating temperature: High-grade construction rated for -40°C to 70°C environments.
- Build quality: Corrosion-resistant round aluminum housing protects against harsh outdoor elements.
Can I use a 440V capacitor to replace a 370V capacitor?
Yes, a 440VAC capacitor like the MARS 12823 is a superior upgrade for a 370VAC unit, as it offers a higher voltage tolerance. Never substitute a lower voltage capacitor for a higher voltage requirement.
What are the signs that a 70/5 MFD capacitor has failed?
Common indicators include a bulging or "mushroomed" top, leaking oil, a humming compressor that fails to start, or the outdoor fan motor not reaching full RPM.
Is the MARS 12823 compatible with different brands?
This is a universal HVAC replacement part. As long as the capacitance (70+5 MFD) and voltage (440V or 370V) match the original OEM specs, this unit will function correctly across various equipment brands.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The MARS 12823 Run Capacitor is a high-performance dual run capacitor designed for demanding HVACR applications requiring a 70/5 MFD rating at 440 VAC. Engineered to withstand rigorous duty cycles, this round metal case capacitor is a reliable replacement for failing start or run components in residential and commercial condensing units. It features a non-PCB, biodegradable oil fill and is rated for up to 60,000 hours of service life under standard operating conditions. The MARS 12823 is protected by an internal pressure sensitive interrupter, ensuring the circuit opens safely if internal pressure builds. Designed for compatibility with various PSC motor and compressor configurations, it handles both 370V and 440V applications, providing the necessary phase shift for optimal torque and energy efficiency. The physical dimensions and 1/4-inch quick-connect terminals allow for a straightforward drop-in installation during routine maintenance or emergency repairs.
Technical Specifications and Key Benefits- Dual capacitance: 70+5 Microfarad (MFD) for simultaneous compressor and fan motor support.
- Voltage rating: Rated for 440 Volts AC, suitable for high-voltage heavy-duty cycles.
- Safety standard: UL/CSA recognized with an integrated pressure sensitive interrupter.
- Operating temperature: High-grade construction rated for -40°C to 70°C environments.
- Build quality: Corrosion-resistant round aluminum housing protects against harsh outdoor elements.
Can I use a 440V capacitor to replace a 370V capacitor?
Yes, a 440VAC capacitor like the MARS 12823 is a superior upgrade for a 370VAC unit, as it offers a higher voltage tolerance. Never substitute a lower voltage capacitor for a higher voltage requirement.
What are the signs that a 70/5 MFD capacitor has failed?
Common indicators include a bulging or "mushroomed" top, leaking oil, a humming compressor that fails to start, or the outdoor fan motor not reaching full RPM.
Is the MARS 12823 compatible with different brands?
This is a universal HVAC replacement part. As long as the capacitance (70+5 MFD) and voltage (440V or 370V) match the original OEM specs, this unit will function correctly across various equipment brands.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
