MARS 12200 Run Capacitor
As a veteran tech, you know the frustration of a midnight service call only to find a 45/7.5 dual-run capacitor in a housing that won't fit your standard truck stock. The MARS 12200 Turbo 200 Round Universal Run Capacitor is the definitive solution to "not having the right part." This heavy-duty motor run capacitor replaces over 200 individual single and dual-value capacities, specifically designed to handle the rigorous demands of residential and light commercial HVAC equipment. With a range from 2.5 to 67.5 Microfarad (MFD) and a dual-voltage rating of 370/440Vac, it eliminates the need to carry an exhaustive inventory of round dual capacitors on your van.

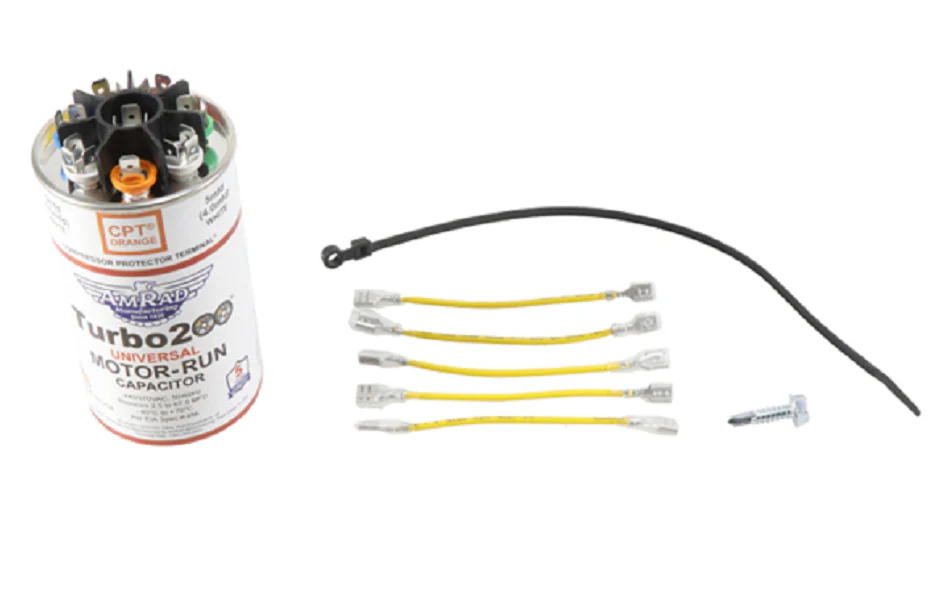

This HVAC capacitor replacement is engineered using a single, high-temperature metallized polypropylene film winding with patented terminal "taps", allowing you to combine values using the included jumper wires. The Turbo 200 features six distinct terminals (including labeled 2.5, 5.0, 5.0, 10.0, 20.0, and 25.0 MFD taps) and an orange Compressor Protector Terminal (CPT). The CPT acts as a critical safety switch when used with hard start kits, protecting the compressor in the event of a capacitor failure. Encased in a leak-proof, double-rolled metal housing with all-brass terminals to prevent corrosion, it is UL 810 listed and rated for 10,000 AFC (Available Fault Current), ensuring it meets or exceeds OEM specifications for performance and safety.
Key Benefits for Technicians:
- Universal Capability: Consolidates truck stock by replacing 200+ single and dual-value capacitors in one round universal capacitor.
- Broad Range: Covers 2.5-67.5 MFD, satisfying the start and run requirements for both fan motors and compressors.
- Superior Reliability: Built with high-grade materials that withstand extreme temperatures (-40°C to 70°C) and a service life tested for 60,000 operational hours.
- Compressor Protection: Integrated CPT terminal provides a dedicated connection for hard start kits to prevent potential compressor burnout.
- Corrosion Resistance: All-brass terminals ensure high conductivity and zero rust issues, even in high-humidity or coastal environments.
Common Questions:
Can I use a Turbo 200 for both 370V and 440V applications?
Yes. This capacitor is rated for 440Vac, making it fully backwards compatible with 370Vac systems. It is designed to handle the higher voltage stress without degradation.
How do I wire the capacitor for a dual-value application, like 35+5?
Using the included jumper wires, you connect the internal taps (e.g., the 10 and 25 terminals) to reach the 35 MFD herm value, while the remaining 5 terminal serves the fan. Always connect the compressor start winding to the highest combined value.
Is this a permanent replacement or just for emergencies?
The AmRad Turbo 200 is an industrial-grade, permanent replacement. It is engineered to outlast standard capacitors and meet the EIA 456 international standard for long-term motor run performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
