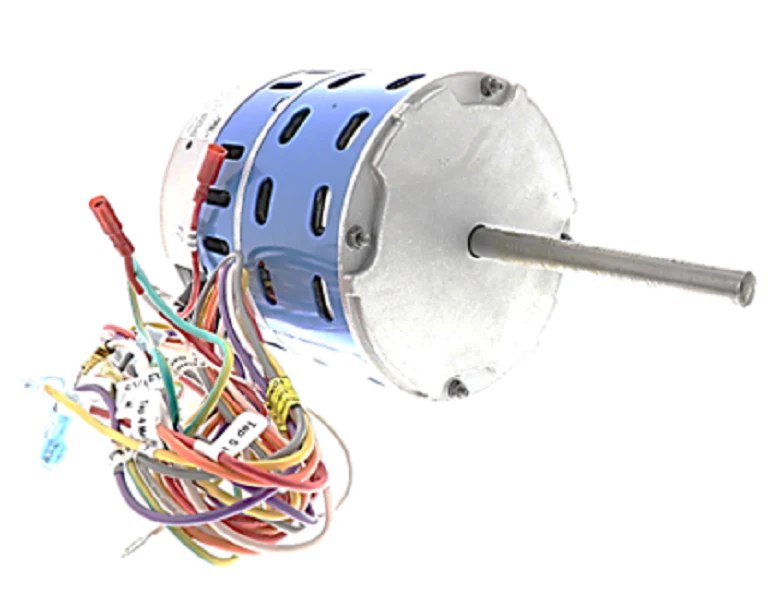

MARS 10865 Motor
Upgrade your client's efficiency with the MARS 10865 Azure ECM Motor, a high-performance 1/3-1/2 HP replacement motor designed for versatile direct-drive blower applications. This dual voltage 115/230V unit serves as a robust PSC motor replacement, eliminating the need for a run capacitor and simplifying high-voltage connections. Engineered with constant torque ECM technology, the 10865 maintains consistent airflow across five programmed speed taps, ensuring optimal CFM even as static pressure fluctuates. For contractors managing varied truck stock, this reversible rotation motor features auto-sizing technology that self-programs to the correct horsepower upon startup. The NEMA 48 frame and ball-bearing construction provide durable operation in ambient temperatures up to 55°C. Whether used in furnace blowers or air handlers, this energy-efficient HVAC motor integrates seamlessly with existing wire harnesses, providing a high-efficiency alternative to standard induction motors without complex external controls.
Key Benefits:- Universal Compatibility: Replaces standard 1/3 and 1/2 HP PSC motors in residential and light commercial HVAC systems.
- High-Efficiency Performance: Utilizes electronically commutated motor technology to reduce energy consumption by up to 25% compared to traditional motors.
- Simplified Installation: No capacitor required; features simple line voltage speed taps and a reversible plug for clockwise or counter-clockwise rotation.
- Constant Torque Design: Automatically adjusts to maintain set airflow, compensating for dirty filters or restrictive ductwork.
- Integrated Protection: Includes an outboard surge protector within the wire harness to defend sensitive electronics against voltage spikes.
How do I change the rotation of the MARS 10865?
Rotation is easily reversed by following the color-coded jumper instructions on the motor label. This allows for both CW and CCW orientations during the field installation.
Does this motor require a specific thermostat or control board?
No. The MARS 10865 is a drop-in replacement that operates using standard 24V signals from the existing HVAC control board, exactly like a standard PSC motor.
Can I manually adjust the CFMs for specific speed taps?
While the motor features an auto-sizing "learn mode" to set horsepower, you can use the optional MARS 08502 handheld programmer to manually fine-tune the torque percentages for each of the five taps if specific airflow requirements are needed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
