MARS 10860 Motor

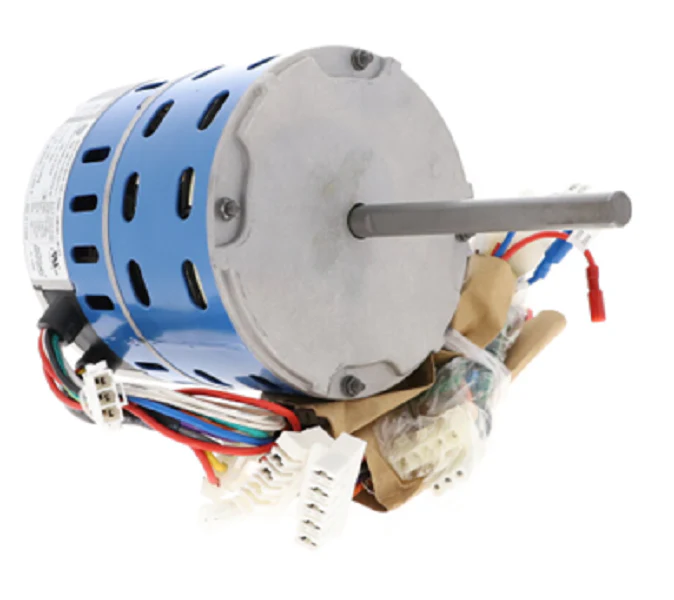

Maximize your service efficiency with the MARS 10860 Azure Digi-Motor, a high-performance ECM constant torque blower motor designed for seamless PSC and X-13 motor replacement. This multi-horsepower unit covers applications from 1/5 HP to 1/2 HP, allowing you to reduce truck stock by replacing a wide range of OEM parts with a single, versatile solution. Operating at 120/240V dual voltage, the 10860 features an innovative auto-sizing learn mode that automatically measures external static pressure and assigns precise torque values to its 5 speed taps, ensuring optimal airflow without manual programming. Built with ball bearings and an 85% high-efficiency design, this reversible rotation motor includes an outboard replaceable surge protector to defend the sensitive control module against power spikes. Whether you are upgrading an older furnace or repairing a modern air handler, the NEMA 48 frame and belly band mount provide a standard fit for immediate installation.
Key Benefits for HVAC Contractors- Universal Compatibility: One motor replaces most 1/5 - 1/2 HP direct drive blower motors, simplifying inventory management.
- Plug-and-Play Setup: The auto-sizing calibration programs torque in under two minutes for a custom fit to any duct system.
- Enhanced Protection: Features a replaceable surge protector and internal thermal overload protection for demanding environments.
- Energy Efficiency: High-efficiency ECM technology reduces operational costs compared to standard PSC blower motors.
- Flexible Configuration: Supports CW and CCW rotation via simple wire jumpers for maximum field adaptability.
Can the MARS 10860 replace a Genteq X13 motor?
Yes, the Azure 10860 is specifically engineered as a direct ECM replacement motor for X-13 and high-efficiency constant torque motors.
How do I change the rotation on this motor?
Rotation is field-reversible. Simply connect or disconnect the white rotation pigtail leads to switch between clockwise and counter-clockwise operation.
Does this motor require a capacitor?
No, as an ECM (Electronically Commutated Motor), the MARS 10860 does not require a run capacitor. You should remove the old capacitor during installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $335.96
-65%$335.96
$117.59MARS 10860 Motor
Maximize your service efficiency with the MARS 10860 Azure Digi-Motor, a high-performance ECM constant torque blower motor designed for seamless PSC and X-13 motor replacement. This multi-horsepower unit covers applications from 1/5 HP to 1/2 HP, allowing you to reduce truck stock by replacing a wide range of OEM parts with a single, versatile solution. Operating at 120/240V dual voltage, the 10860 features an innovative auto-sizing learn mode that automatically measures external static pressure and assigns precise torque values to its 5 speed taps, ensuring optimal airflow without manual programming. Built with ball bearings and an 85% high-efficiency design, this reversible rotation motor includes an outboard replaceable surge protector to defend the sensitive control module against power spikes. Whether you are upgrading an older furnace or repairing a modern air handler, the NEMA 48 frame and belly band mount provide a standard fit for immediate installation.
Key Benefits for HVAC Contractors- Universal Compatibility: One motor replaces most 1/5 - 1/2 HP direct drive blower motors, simplifying inventory management.
- Plug-and-Play Setup: The auto-sizing calibration programs torque in under two minutes for a custom fit to any duct system.
- Enhanced Protection: Features a replaceable surge protector and internal thermal overload protection for demanding environments.
- Energy Efficiency: High-efficiency ECM technology reduces operational costs compared to standard PSC blower motors.
- Flexible Configuration: Supports CW and CCW rotation via simple wire jumpers for maximum field adaptability.
Can the MARS 10860 replace a Genteq X13 motor?
Yes, the Azure 10860 is specifically engineered as a direct ECM replacement motor for X-13 and high-efficiency constant torque motors.
How do I change the rotation on this motor?
Rotation is field-reversible. Simply connect or disconnect the white rotation pigtail leads to switch between clockwise and counter-clockwise operation.
Does this motor require a capacitor?
No, as an ECM (Electronically Commutated Motor), the MARS 10860 does not require a run capacitor. You should remove the old capacitor during installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
