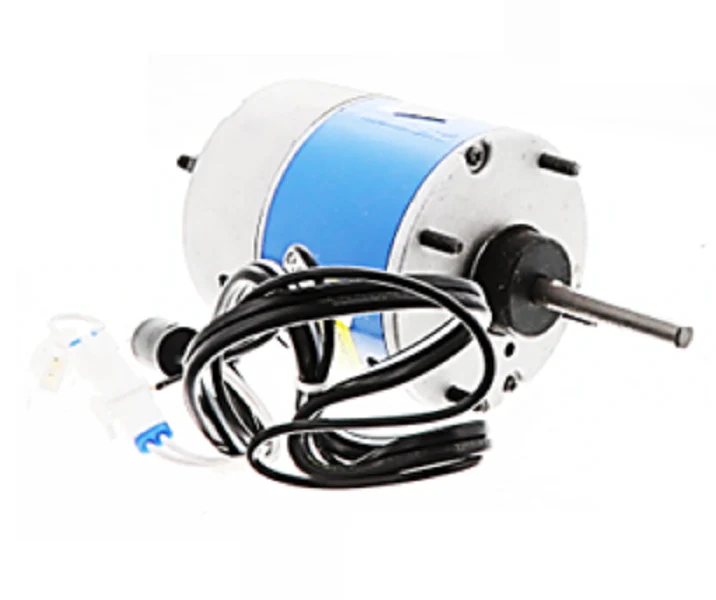

MARS 10850 Motor
The MARS 10850 Azure Digi-Motor is a professional-grade ECM replacement motor engineered for commercial refrigeration evaporator fan applications. This 3.3-inch diameter motor is a versatile "drop-in" solution that automatically adjusts internal logic to match loads between 1/15 HP and 1/25 HP. Designed to eliminate truck stock redundancy, it operates on a wide 115/230V auto-sensing voltage range and features a dual-speed capability (1550/800 RPM). This totally enclosed air over (TEAO) unit utilizes high-efficiency electronically commutated motor technology, which reduces power consumption and operates at lower temperatures compared to standard shaded pole or PSC motors. The ball bearing construction supports all-angle mounting, including horizontal or vertical shaft-down positions. With reversible rotation toggled via a simple jumper wire and no run capacitor required, this motor simplifies the retrofit process in walk-in coolers and freezers.
Key Benefits- Universal Compatibility: Replaces most fractional HP OEM, PSC, and shaded pole motors in commercial refrigeration air-move applications.
- High Energy Efficiency: Advanced ECM technology consumes fewer watts and reduces the overall refrigeration load.
- Simplified Installation: Features a Lyall plug for standard 1550 RPM connections and a secondary speed tap for 800 RPM operation.
- Dual Voltage Sensing: Automatically detects 115V or 230V power supply, reducing wiring errors in the field.
- Robust Design: Equipped with thermal overload protection and a 5/16-inch diameter flatted shaft for secure fan blade mounting.
Does this motor require a capacitor for 115V or 230V operation?
No, since this is an ECM motor, it does not require a start or run capacitor, simplifying the electrical footprint within the evaporator housing.
How do I change the rotation direction on the MARS 10850?
Rotation is field-reversible. You can toggle between CW and CCW rotation by adjusting the provided jumper wire on the motor harness before final installation.
Can this motor be used in sub-zero freezer environments?
Yes, the MARS 10850 is rated for an operating temperature range of -40°F to 131°F, making it suitable for both cooler and freezer evaporator coils.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
