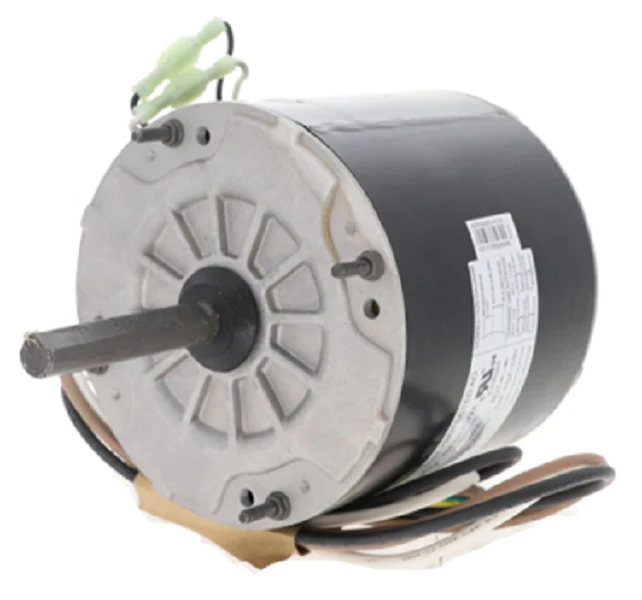

MARS 10724 Motor
The MARS 10724 Super-Fit Condenser Fan Motor is a specialized 42-frame PSC motor specifically engineered to help contractors streamline their truck stock. Operating at 208-230V single phase, this multi-horsepower unit effectively replaces 1/4 HP, 1/5 HP, and 1/6 HP applications, maintaining a high-torque performance at 1625 RPM. Designed with a TEAO (Totally Enclosed Air Over) enclosure and Class B insulation, it is built to withstand the rigorous demands of outdoor condensing units. The motor features Super-Fit mounting holes for seamless integration with Trane 4.33, 4.42, and 4.62 bolt circles, and the reversible rotation capability provides the versatility needed for diverse field installations.
Key Benefits for HVACR Technicians:- Versatile Multi-HP Design: Consolidates inventory by covering 1/4 HP, 1/5 HP, and 1/6 HP motor requirements with one part.
- Optimized Mounting: Includes Super-Fit mounting holes and 36-inch leads for faster installation on Trane and other 42-frame systems.
- Rugged Componentry: Equipped with ball bearings and automatic thermal overload protection to ensure reliable operation in high-ambient conditions up to 60°C.
- Universal Shaft Compatibility: 1/2-inch diameter flatted shaft (3-inch length) matches standard fan blade hubs for a secure fit.
Is the MARS 10724 a direct replacement for Trane condenser motors?
Yes, this condenser fan motor is designed with specific bolt circles for Trane systems (4.33, 4.42, and 4.62 circles) making it a preferred replacement for MARS 10724 and various OEM applications.
What capacitor is required for this 1625 RPM motor?
The unit typically requires a 5 MFD / 370V capacitor, though you should always verify the specific requirement printed on the motor nameplate during installation.
Can I change the direction of rotation in the field?
The reversible rotation motor allows you to switch between CW and CCW rotations by simply swapping the internal lead connectors before final mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $123.39
-65%$123.39
$43.19MARS 10724 Motor
The MARS 10724 Super-Fit Condenser Fan Motor is a specialized 42-frame PSC motor specifically engineered to help contractors streamline their truck stock. Operating at 208-230V single phase, this multi-horsepower unit effectively replaces 1/4 HP, 1/5 HP, and 1/6 HP applications, maintaining a high-torque performance at 1625 RPM. Designed with a TEAO (Totally Enclosed Air Over) enclosure and Class B insulation, it is built to withstand the rigorous demands of outdoor condensing units. The motor features Super-Fit mounting holes for seamless integration with Trane 4.33, 4.42, and 4.62 bolt circles, and the reversible rotation capability provides the versatility needed for diverse field installations.
Key Benefits for HVACR Technicians:- Versatile Multi-HP Design: Consolidates inventory by covering 1/4 HP, 1/5 HP, and 1/6 HP motor requirements with one part.
- Optimized Mounting: Includes Super-Fit mounting holes and 36-inch leads for faster installation on Trane and other 42-frame systems.
- Rugged Componentry: Equipped with ball bearings and automatic thermal overload protection to ensure reliable operation in high-ambient conditions up to 60°C.
- Universal Shaft Compatibility: 1/2-inch diameter flatted shaft (3-inch length) matches standard fan blade hubs for a secure fit.
Is the MARS 10724 a direct replacement for Trane condenser motors?
Yes, this condenser fan motor is designed with specific bolt circles for Trane systems (4.33, 4.42, and 4.62 circles) making it a preferred replacement for MARS 10724 and various OEM applications.
What capacitor is required for this 1625 RPM motor?
The unit typically requires a 5 MFD / 370V capacitor, though you should always verify the specific requirement printed on the motor nameplate during installation.
Can I change the direction of rotation in the field?
The reversible rotation motor allows you to switch between CW and CCW rotations by simply swapping the internal lead connectors before final mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
