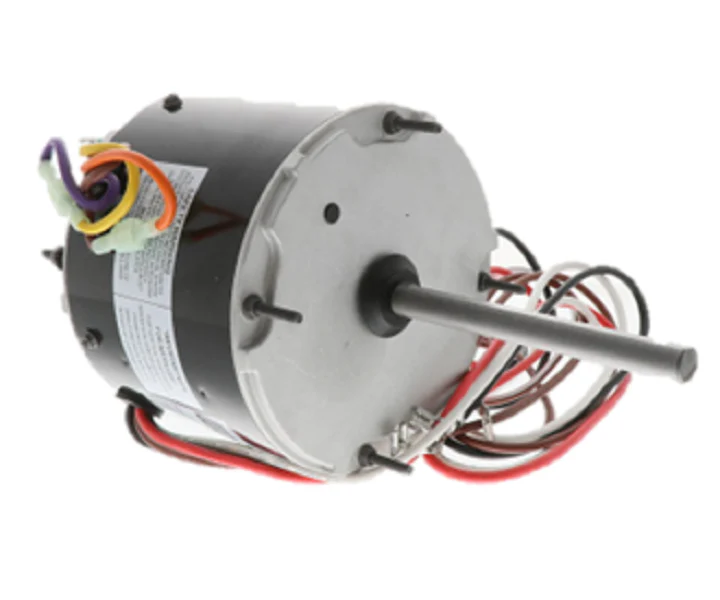

MARS 10465 Motor
The MARS 10465 multi-horsepower condenser fan motor is a purpose-built solution designed for high-performance HVACR replacement applications. This 5.5-inch diameter PSC motor features a versatile 1/6 to 1/3 HP range, operating at 208-230V and 1075 RPM. Engineered for the professional contractor, the MARS 10465 includes Rheem mounting holes with pre-installed screws and supports both through-bolt and belly band mounting configurations. Its TEAO (Totally Enclosed Air Over) enclosure and ball-bearing design ensure durable operation in demanding outdoor environments, whether used for air conditioning or heat pump duty. The motor is electrically reversible and includes a water slinger on the shaft to protect against moisture ingress. As a dual-speed, all-angle mount motor, it serves as a critical truck stock motor, consolidating multiple SKUs into a single, reliable component for immediate field service.
Key Benefits:- Universal Compatibility: Integrated Rheem mounting holes and multiple mounting options simplify condenser fan motor replacement.
- Multi-Horsepower Flexibility: Adjustable 1/6-1/3 HP range allows for a wider range of equipment coverage with a single unit.
- Enhanced Protection: Thermal overload protection and Class B insulation prevent premature failure under high ambient conditions.
- Field Reversibility: Easy rotation reversal ensures compatibility with varying fan blade pitches without needing additional parts.
- Heavy-Duty Construction: Features ball bearings for all-angle mounting (vertical shaft up, down, or horizontal) and a 5-inch long, 1/2-inch diameter shaft.
What capacitor is required for the MARS 10465?
This motor typically requires a 5 MFD or 7.5 MFD / 370V run capacitor, depending on the specific horsepower lead selected during installation.
Can this motor be mounted vertically?
Yes, the MARS 10465 is designed with ball bearings for all-angle use, making it suitable for vertical shaft up, vertical shaft down, or horizontal mounting positions.
Is the rotation reversible in the field?
Yes, the motor is electrically reversible, allowing technicians to match the required rotation of the existing fan assembly quickly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
