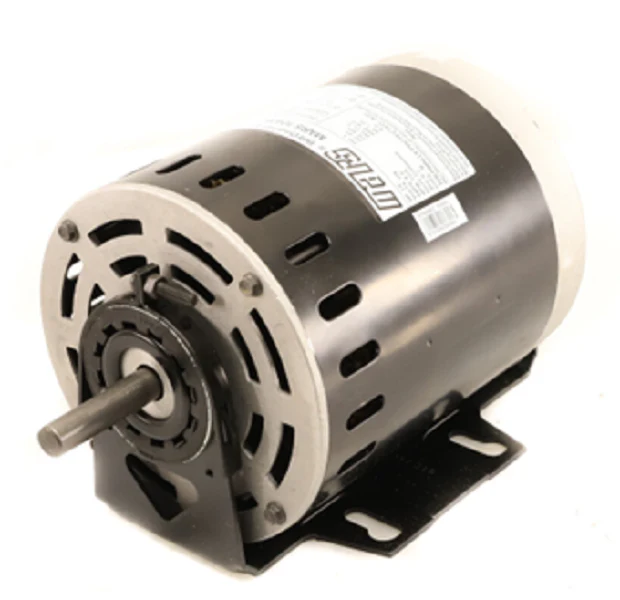

MARS 10406 Motor
The MARS 10406 Motor is a high-performance 1/3 HP belt drive motor engineered for reliability in demanding commercial and residential air handling applications. Operating at a 115V single-phase input, this split phase motor delivers a consistent 1725 RPM, making it an ideal replacement for belted fans and blowers. Built with a NEMA 48 frame and ball bearing construction, the 10406 is designed for continuous duty cycles. The reversible rotation feature allows for field-adjustable clockwise or counter-clockwise configuration, while the resilient base mount with slotted holes ensures compatibility with both 48 and 56 frame bolt patterns. With Class B insulation and automatic thermal overload protection, this HVAC blower motor maintains operational safety even under high-load conditions. The 1/2-inch diameter shaft extends 1.85 inches, providing a secure fit for standard pulleys and drive systems used by contractors in the field.
Key Benefits:- Universal Mounting: Slotted base holes provide a flexible fit for 48 and 56 frame patterns, reducing the need for multiple truck-stock motors.
- Enhanced Durability: Equipped with ball bearings for reduced friction and extended service life compared to standard sleeve bearing alternatives.
- Field Reversibility: Simple reversible rotation leads allow for quick adjustments to match the specific requirements of the blower housing.
- Thermal Protection: Integrated automatic reset thermal overload prevents winding damage during temporary stalls or over-current events.
- Performance Stability: A high 1.35 service factor ensures the motor can handle occasional load surges without compromising long-term efficiency.
- Does this motor require a run capacitor? No, the MARS 10406 is a split phase motor and does not require an external run capacitor for operation.
- What are the mounting requirements for this unit? It features a resilient base mount designed to isolate vibration. The base is compatible with NEMA 48 and 56 bolt patterns.
- Can this be used for direct drive applications? No, this is specifically a belt drive motor designed for belted fan or blower systems where the pulley is mounted to the 1/2-inch shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
