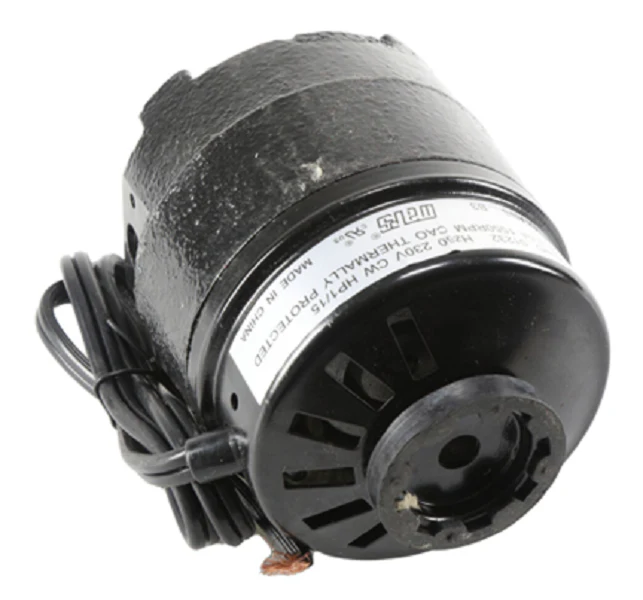

MARS 01232 Motor
The MARS 01232 Motor is a heavy-duty, 1/15 HP shaded pole condenser fan motor engineered for reliable performance in demanding HVACR environments. Running at 1550 RPM on a 208-230V single-phase circuit, this all-angle mount motor features a versatile frame 11 design that allows for horizontal or shaft-down installation. Its continuous air over (CAO) duty cycle and Class B insulation ensure thermal stability during prolonged cooling cycles. Built with a durable sleeve bearing and a 3/8-inch diameter shaft, the MARS 01232 serves as a high-tier OEM replacement motor for various residential and light commercial condenser units. This motor is clockwise (CW) rotation-ready and comes equipped with 12-inch leads and 8-32 tapped holes on the shaft end for secure fan blade attachment. When your service calls require a dependable, 230V 1550 RPM motor that fits tight footprints without sacrificing torque, this unit provides the professional-grade specifications needed to get the system back online.
Key Benefits for Technicians:
- Wide Compatibility: The MARS 01232 serves as a versatile drop-in replacement for motors with Frame 11 specifications and 1/15 HP requirements.
- Flexible Mounting: Designed as an all-angle unit bearing motor, it supports shaft-up, shaft-down, or horizontal mounting positions.
- Thermal Protection: Built-in internal overload protection prevents winding burnout during high-ambient operation.
- Quiet Operation: The sleeve bearing design minimizes vibration and noise, maintaining standard localized decibel levels.
Common Questions Regarding the MARS 01232:
What is the rotation direction for this motor?
The MARS 01232 is fixed for clockwise (CW) rotation when viewed from the lead end. Always verify the fan blade pitch before installation to ensure proper airflow direction.
Can I use this 230V motor on a 115V system?
No, this motor is strictly rated for 208-230V applications. Operating it on a lower voltage will result in insufficient torque and eventual motor failure.
What are the shaft dimensions for fan blade matching?
This motor utilizes a standard 3/8-inch diameter shaft with a length of approximately 2.56 inches, making it compatible with most standard hub-style fan blades.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $676.93
-65%$676.93
$236.93MARS 01232 Motor
The MARS 01232 Motor is a heavy-duty, 1/15 HP shaded pole condenser fan motor engineered for reliable performance in demanding HVACR environments. Running at 1550 RPM on a 208-230V single-phase circuit, this all-angle mount motor features a versatile frame 11 design that allows for horizontal or shaft-down installation. Its continuous air over (CAO) duty cycle and Class B insulation ensure thermal stability during prolonged cooling cycles. Built with a durable sleeve bearing and a 3/8-inch diameter shaft, the MARS 01232 serves as a high-tier OEM replacement motor for various residential and light commercial condenser units. This motor is clockwise (CW) rotation-ready and comes equipped with 12-inch leads and 8-32 tapped holes on the shaft end for secure fan blade attachment. When your service calls require a dependable, 230V 1550 RPM motor that fits tight footprints without sacrificing torque, this unit provides the professional-grade specifications needed to get the system back online.
Key Benefits for Technicians:
- Wide Compatibility: The MARS 01232 serves as a versatile drop-in replacement for motors with Frame 11 specifications and 1/15 HP requirements.
- Flexible Mounting: Designed as an all-angle unit bearing motor, it supports shaft-up, shaft-down, or horizontal mounting positions.
- Thermal Protection: Built-in internal overload protection prevents winding burnout during high-ambient operation.
- Quiet Operation: The sleeve bearing design minimizes vibration and noise, maintaining standard localized decibel levels.
Common Questions Regarding the MARS 01232:
What is the rotation direction for this motor?
The MARS 01232 is fixed for clockwise (CW) rotation when viewed from the lead end. Always verify the fan blade pitch before installation to ensure proper airflow direction.
Can I use this 230V motor on a 115V system?
No, this motor is strictly rated for 208-230V applications. Operating it on a lower voltage will result in insufficient torque and eventual motor failure.
What are the shaft dimensions for fan blade matching?
This motor utilizes a standard 3/8-inch diameter shaft with a length of approximately 2.56 inches, making it compatible with most standard hub-style fan blades.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
