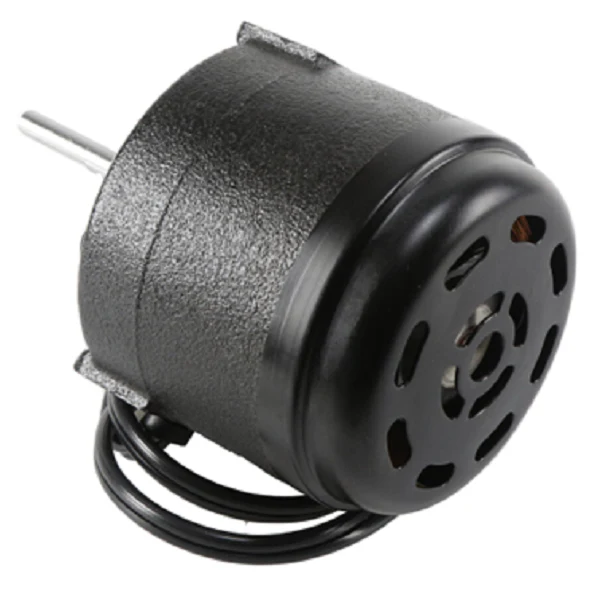

MARS 00507 Motor
The MARS 00507 motor is a high-performance 50W unit bearing motor designed for demanding commercial refrigeration applications, including evaporator and condenser fan systems. Engineered as a direct OEM replacement motor, this 230V component features a counter-clockwise (CCW) rotation and a 3-7/8 inch diameter to fit standard EM&S and Tecumseh brackets. Operating at a nominal 1500 RPM (1550 RPM max), this 1-phase motor utilizes a TEAO (Totally Enclosed Air Over) enclosure to protect internal windings from moisture and environmental contaminants, ensuring long-term reliability in reach-in coolers and freezers. With a 0.85 Amp draw and 51 NEMA frame size, the MARS 00507 provides the necessary torque for consistent airflow and temperature regulation. The unit includes a 1/4 inch diameter shaft and is suitable for horizontal or vertical mounting, making it a versatile refrigeration fan motor for professional HVACR technicians.
Key Benefits:
- Broad Compatibility: Serves as a direct cross-reference for various 50W 230V EM&S, Magnetek, and AO Smith models.
- Industrial Build: Features a durable unit bearing design and TEAO enclosure for superior protection in moist refrigeration environments.
- Optimized Performance: Maintains a steady 1500 RPM to ensure proper CFM and system efficiency across evaporator coils.
- Standardized Fit: 3.85-inch diameter and 1/4-inch shaft allow for quick installation in existing refrigeration fan housings.
Common Questions:
What is the correct rotation for the MARS 00507?
This motor is fixed at CCW (Counter-Clockwise) rotation when viewing from the lead end. Always verify your fan blade pitch to ensure proper airflow direction before installation.
Can I use this to replace a lower wattage motor?
While a 50W motor can often handle loads intended for lower wattage motors (like 35W), ensure the mounting dimensions and voltage (230V) match exactly to avoid mechanical interference or electrical failure.
Is this motor suitable for outdoor condenser units?
Yes, the totally enclosed design makes it suitable for both evaporator and condenser applications, provided the 230V 50W power requirements are met.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $269.06
-65%$269.06
$94.17MARS 00507 Motor
The MARS 00507 motor is a high-performance 50W unit bearing motor designed for demanding commercial refrigeration applications, including evaporator and condenser fan systems. Engineered as a direct OEM replacement motor, this 230V component features a counter-clockwise (CCW) rotation and a 3-7/8 inch diameter to fit standard EM&S and Tecumseh brackets. Operating at a nominal 1500 RPM (1550 RPM max), this 1-phase motor utilizes a TEAO (Totally Enclosed Air Over) enclosure to protect internal windings from moisture and environmental contaminants, ensuring long-term reliability in reach-in coolers and freezers. With a 0.85 Amp draw and 51 NEMA frame size, the MARS 00507 provides the necessary torque for consistent airflow and temperature regulation. The unit includes a 1/4 inch diameter shaft and is suitable for horizontal or vertical mounting, making it a versatile refrigeration fan motor for professional HVACR technicians.
Key Benefits:
- Broad Compatibility: Serves as a direct cross-reference for various 50W 230V EM&S, Magnetek, and AO Smith models.
- Industrial Build: Features a durable unit bearing design and TEAO enclosure for superior protection in moist refrigeration environments.
- Optimized Performance: Maintains a steady 1500 RPM to ensure proper CFM and system efficiency across evaporator coils.
- Standardized Fit: 3.85-inch diameter and 1/4-inch shaft allow for quick installation in existing refrigeration fan housings.
Common Questions:
What is the correct rotation for the MARS 00507?
This motor is fixed at CCW (Counter-Clockwise) rotation when viewing from the lead end. Always verify your fan blade pitch to ensure proper airflow direction before installation.
Can I use this to replace a lower wattage motor?
While a 50W motor can often handle loads intended for lower wattage motors (like 35W), ensure the mounting dimensions and voltage (230V) match exactly to avoid mechanical interference or electrical failure.
Is this motor suitable for outdoor condenser units?
Yes, the totally enclosed design makes it suitable for both evaporator and condenser applications, provided the 230V 50W power requirements are met.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
