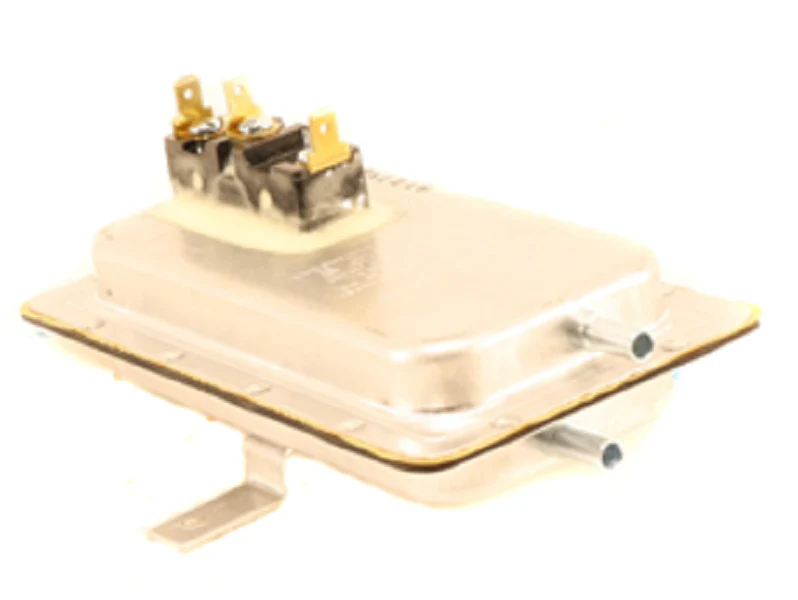

Markel 05460702 Switch
The Markel 05460702 is a field-proven air flow switch designed to provide precise differential pressure monitoring in heating and cooling applications. As the direct replacement for the legacy MRH-1505-DO, this switch is a critical safety component that confirms positive airflow within a duct before allowing heat kits or compressors to engage. Engineered for low-pressure environments, it features a fixed setpoint of 0.5" WC (water column), ensuring that equipment only operates under safe aerodynamic conditions. The Markel 05460702 switch is built with a rugged SPDT contact configuration, allowing for versatile wiring in either normally open or normally closed circuits. This duct heater flow switch or pressure proving switch is suitable for 120-277 VAC systems and utilizes standard tube connections for seamless integration into existing HVAC ductwork. Whether you are replacing a faulty MRH-1505-DO or performing a new install, this switch provides the automatic reset functionality and industrial-grade reliability required for commercial and residential high-efficiency systems.
Key Benefits:- Direct Compatibility: Engineered as the exact MRH-1505-DO replacement, eliminating mounting and wiring guesswork during field service.
- Precise 0.5" WC Activation: Fixed setpoint ensures accurate air pressure monitoring to prevent equipment overheating or coil freeze-ups.
- Robust Electrical Ratings: Supports multiple voltages (125/250/277VAC) at up to 15A, making it a versatile duct heater flow switch for various control circuits.
- Durable SPDT Switch: Single-pole double-throw design provides flexible logic control for both compressor and duct heater safety loops.
- Reliable Mechanical Action: Diaphragm-driven operation with automatic reset ensures consistent performance without manual intervention after transient pressure drops.
Is the Markel 05460702 compatible with any duct heater?
This switch is designed for systems requiring a 0.5" WC setpoint to prove airflow. It serves as a universal duct heater pressure switch provided the system's static pressure fall within its operating range and it replaces the MRH-1505-DO series.
Can this switch be used for compressor protection?
Yes, it is commonly utilized for compressor air proving to ensure that the blower motor is moving sufficient air across the evaporator coil before the refrigeration cycle begins.
What type of connections does the Markel 05460702 use?
The unit features standard tube ports for differential pressure sensing and spade-style terminals for electrical connections, matching the footprint of most Markel and TPI Corporation pressure controls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
