Manitowoc Ice 2301483 Switch

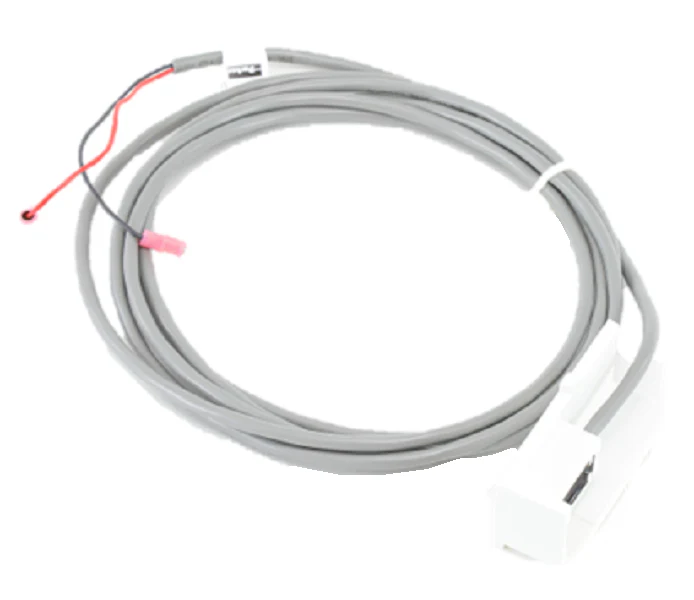

The Manitowoc Ice 2301483 Magnetic Bin Switch Assembly is a critical component for maintaining precise ice level control in commercial ice machines. This 96-inch assembly utilizes a magnetically operated reed switch to signal the control board when the bin is reached capacity, effectively terminating the harvest cycle to prevent overfilling and mechanical strain. Designed for high-performance reliability, this lead length is essential for QuietQube remote systems and larger Indigo series units where the distance between the evaporator bulkhead and the control box exceeds standard dimensions. As a veteran technician knows, troubleshooting ice machine bin switches often reveals intermittent failures due to moisture intrusion or lead degradation; replacing a compromised switch ensures the ice machine harvest cycle restarts only when necessary. This OEM Manitowoc bin control provides the 1/4-inch push-on connectors required for a direct-fit electrical interface. Proper ice machine maintenance requires a functional bin switch to preserve the integrity of the water curtain and evaporator assembly operation.
Key Benefits for the Contractor- Precise Level Sensing: Ensures accurate binary full/empty signals to the control board, preventing bin overflows.
- Extra-Long 96-Inch Leads: Specifically designed for remote condenser units and large-format machines requiring extended wiring runs.
- Magnetic Reed Reliability: Eliminates mechanical failure points typically found in physical lever-style switches.
- Indigo & Q-Series Compatibility: Serves as a versatile replacement for a wide range of legacy and modern Manitowoc ice maker parts.
How do I test the Manitowoc 2301483 bin switch with a multimeter?
Disconnect the switch from the control board and check for continuity (Ohms). The circuit should be closed when the magnet is near the switch (curtain closed) and open when the magnet is moved away (curtain open). If the Ohms fluctuate or the circuit stays open, the reed switch is defective.
Why is my ice machine clicking but not starting?
A faulty bin switch can cause rapid cycling or "clicking" if it sends intermittent signals. Ensure the bin switch magnet on the water curtain is properly aligned and the machine is perfectly level, as gravity is required for the curtain to seat the magnet correctly against the switch.
Can I use this 96-inch switch on a machine that originally had a 36-inch lead?
Yes, the electrical specifications are identical. While the 96-inch magnetic bin switch assembly provides more lead than a standard 36-inch version (like the 000007888), it can be used if the excess wire is safely secured away from moving parts and moisture-heavy zones.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
