Manitowoc Ice 2009089 Contactor

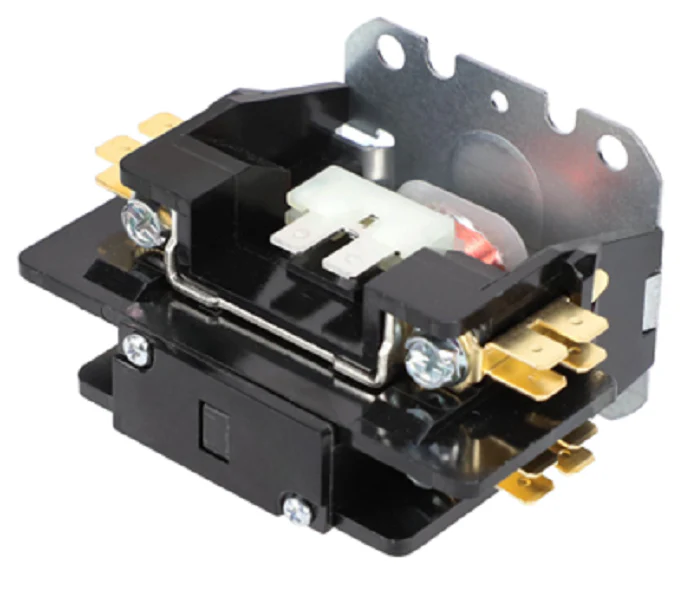

The Manitowoc Ice 2009089 Contactor is a high-duty 1-pole compressor contactor designed for exact fit and function in commercial ice machine power circuits. Engineered for 208-240V, 50/60Hz applications, this 40-amp contactor features an integrated shunt to maintain a constant electrical path, essential for dual-voltage components or providing a continuous neutral reference. As a veteran-grade OEM Manitowoc replacement part, it ensures proper startup torque and consistent switching for high-capacity models like the Indigo NXT series and S-series units (S1400, S1800). Heavy-duty silver alloy contacts provide superior arc suppression and extend the life of the compressor motor by preventing premature pitting. This component is the primary interface between your control board and the high-draw refrigeration system, making it the first line of defense for electrical reliability. When troubleshooting "no-start" conditions or burnt coil symptoms, utilizing this genuine HVACR electrical contactor eliminates compatibility variances associated with generic definite purpose switches.
Key Benefits
- Direct OEM Compatibility: Specifically calibrated for Manitowoc I, S, and Indigo NXT models to ensure proper voltage across the 208/240V coil.
- Integrated Shunt Design: The 1-pole with shunt configuration allows for continuous power flow on one side of the circuit, streamlining wiring in many 230V systems.
- High Amperage Rating: Rated for 40 amps, providing the necessary overhead for large commercial compressors and high-torque startups.
- Reliable Arc Suppression: Durable contacts minimize electrical noise and heat buildup, protecting sensitive control boards and downstream components.
- Simple Installation: Designed with standard industry footprints and terminal layouts for rapid field replacement during service calls.
Common Questions
What is the purpose of the shunt on this contactor?
In 1-pole configurations, the shunt acts as a permanent bridge on one side of the power line. For technicians, this means you only switch one leg of the power while the other remains connected, which is common in Manitowoc circuitry to provide a constant neutral or reference voltage to other auxiliary components.
Will this replace a 30-amp contactor?
Yes, a 40-amp rated contactor like the 2009089 can safely replace a 30-amp unit, provided the coil voltage (208/240V) and physical footprint match. It offers a higher thermal capacity, which can be beneficial in heavy-use environments.
How do I know if my contactor coil has failed?
Check for 208-240V at the coil terminals when the machine calls for cooling. If voltage is present but the contacts do not pull in, or if you measure an open circuit (infinite ohms) across the coil with power disconnected, the coil is physically compromised and requires replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
