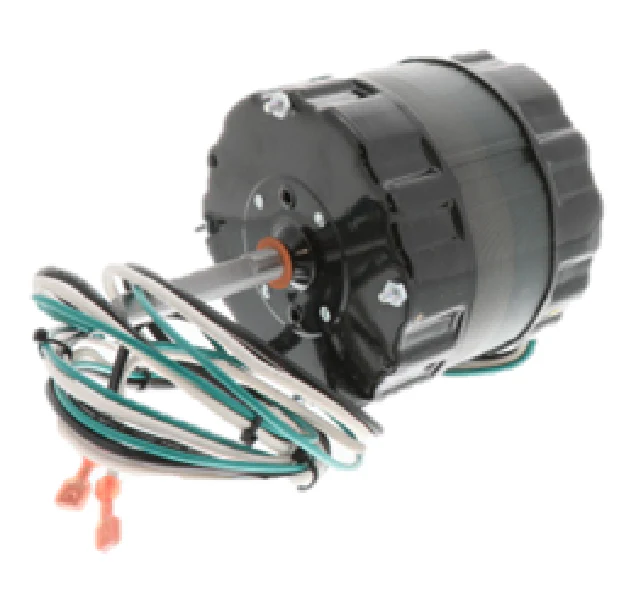

Manitowoc Ice 2000189 Motor
The Manitowoc Ice 2000189 Fan Motor Kit is a critical OEM replacement part engineered for high-output condenser cooling in commercial ice machines. This motor operates at 208-230V, 60Hz, and 1.5 Amps, delivering a consistent 1050 RPM to maintain optimal head pressure and heat rejection. Built with a durable steel housing and a 1/2" diameter shaft, this condenser fan motor ensures a direct fit for Manitowoc ice machine repair, particularly within CVD and RCU remote condenser systems. Designed for single-phase electrical configurations, the kit features standard 1/4" tab terminals and 5-inch wire leads (black, white, green) to simplify field installation. As a technician-grade component, it provides the exact torque and airflow specifications required to prevent compressor overheating and ensure the harvest cycle remains within factory tolerances. Choosing this genuine Manitowoc fan motor avoids the mismatched mounting bracket or electrical connector issues often found with universal aftermarket alternatives.
Key Benefits- Direct OEM Compatibility: Specifically engineered for Manitowoc CVD0675, CVD0875, CVD1075, and RCU series, eliminating the need for modifications.
- High-Performance Cooling: Rotates clockwise from the lead end at 1050 RPM, ensuring the high-side pressure stays within the required operating range.
- Rugged Construction: Features a moisture-resistant steel frame designed to withstand the harsh environment of an outdoor remote condenser.
- Simplified Wiring: Includes standard 0.25-inch tab terminals and color-coded leads for rapid replacement and reduced downtime.
What are the symptoms of a failing 2000189 fan motor?
Common indicators include erratic fan speed (often caused by a failing fan cycle pressure switch), excessive noise from the motor bearings, or the ice machine shutting down on high-pressure cutouts because the condenser is not being cooled.
Can I use a 115V motor as a substitute for this kit?
No. The Manitowoc 2000189 is specifically rated for 208-230V AC. Attempting to use a lower voltage motor will cause immediate electrical failure and could damage the machine's control board or contactors.
Does this kit include the fan blade?
This SKU refers to the motor kit which typically includes the motor and mounting hardware. Inspect your existing fan blade for balance or pitch issues; if damaged, it should be replaced concurrently to prevent vibration or motor bearing wear.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
