Manitowoc Ice 040002396 Switch

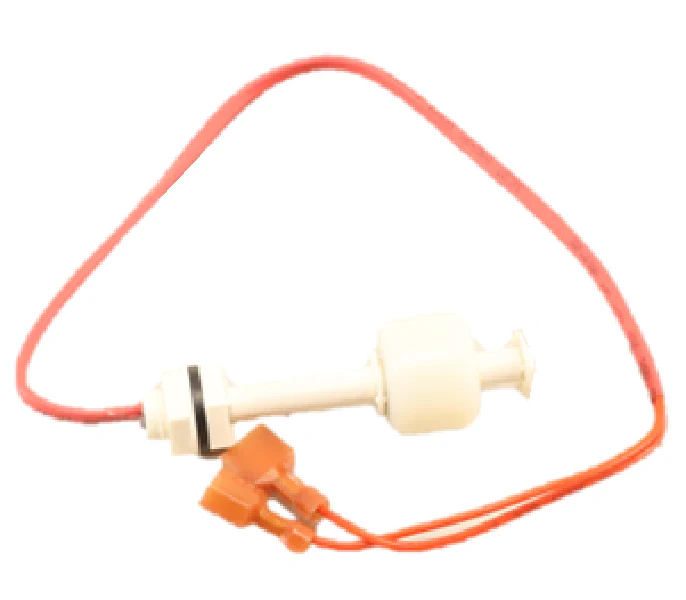

The Manitowoc Ice 040002396 Harvest Float Switch is a critical OEM replacement part designed for precision water level sensing in Manitowoc NEO undercounter ice machines. This normally closed magnetic reed switch governs the transition from the freeze cycle to the harvest cycle by detecting when the water trough has been sufficiently depleted. Engineered for a direct fit in models such as the UD0140A, UY0190A, and UR0240A, this red-wired float switch ensures the control board receives accurate telemetry to prevent short cycling or freeze-up conditions. Unlike the adjustable ice thickness probe, the 040002396 harvest float features a fixed position within the bracket to maintain factory-spec bridge thickness and consistent ice production cycles. Field technicians should prioritize this genuine Manitowoc part to resolve E01 Long Freeze or E02 Long Harvest error codes caused by scale-binding or intermittent signal loss from the magnetic float. Reliable water level communication is essential for maintaining the evaporator plate integrity and overall system efficiency in high-demand commercial environments.
Key Benefits for Technicians- Direct OEM Compatibility: Designed specifically for Manitowoc NEO series units including UD, UY, and UR models for a seamless plug-and-play installation.
- Optimized Harvest Timing: Provides precise water level detection to initiate the harvest sequence only when the reservoir reaches the correct depletion point.
- Robust Reed Switch Design: The normally closed contacts offer reliable switching performance under constant moisture and temperature fluctuations.
- Reduced Callbacks: Eliminates the common ice machine troubleshooting issues related to thin ice, hollow cubes, or machines stuck in a permanent freeze state.
- What are the symptoms of a failing harvest float switch? Common indicators include the machine staying in freeze mode too long, producing oversized ice bridges, or the harvest light failing to activate on the control board when the float is in the down position.
- How do I test the 040002396 float switch? Use a multimeter to check for continuity across the red wires. The switch contacts should be closed when the float is in the down position and open when raised.
- Is the harvest float adjustable? No. While the ice thickness float (black wires) has three positions, the harvest float switch is fixed at the factory setting to ensure the water trough is fully utilized before harvesting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
