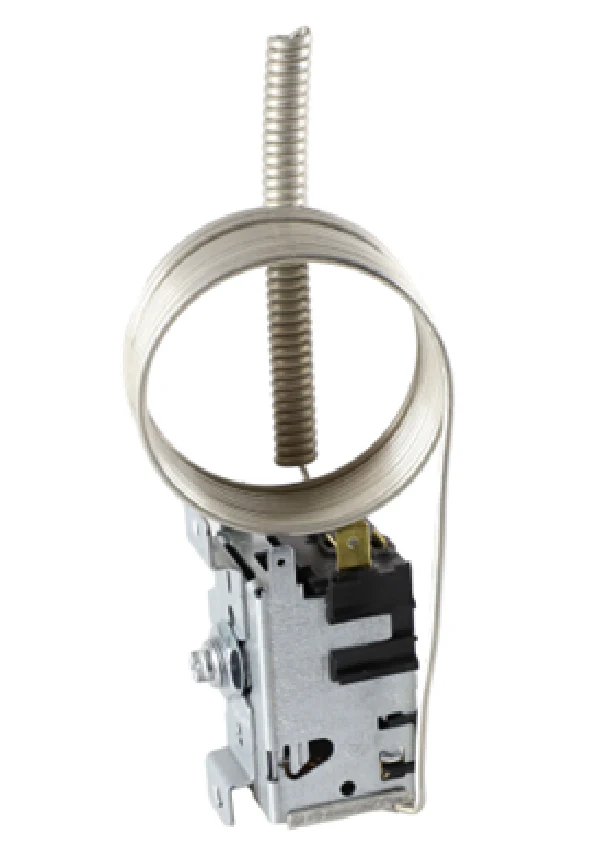

Manitowoc Ice 000016461 Bin Thermostat
As an experienced tech, you know that a faulty Manitowoc Ice 000016461 Bin Thermostat is often the silent culprit behind a machine that stays in a permanent freeze cycle or fails to initiate. This genuine OEM replacement part is engineered specifically for precise temperature monitoring within the ice storage bin. Built to the exact technical specifications of your Manitowoc equipment, it ensures the unit cycles off once the bin is at capacity, preventing evaporator freeze-ups and potential component damage. It is a direct factory-authorized alternative for older part numbers 11623 and 000005765. For a successful thermostat installation, remember to mount the bracket vertically; horizontal orientation can lead to inaccurate sensor readings. This commercial ice machine control is designed for high-duty cycles in demanding kitchen environments. Using it maintains the system integrity and structural compatibility of Manitowoc RF and RCU series units, including popular models like the RF0650A and RNS1009W. Reliability in ice bin level control starts with high-quality, calibrated components that match the original machine logic.
Key Benefits for the Contractor:- Direct Compatibility: Engineered as a drop-in OEM replacement for Manitowoc 000016461, ensuring no modifications are needed during service calls.
- Accurate Calibration: Pre-set to trigger between 6 and 10 seconds of ice contact, maintaining optimal storage bin levels without manual tuning.
- System Protection: Prevents the ice maker from over-producing, protecting the evaporator plate and water curtain from mechanical stress.
- Reduced Callbacks: High-grade coiled sensor wire provides stable resistance values, minimizing the risk of intermittent bin switch failure.
How do I test the Manitowoc 000016461 thermostat?
With the machine off, use a multimeter to check for continuity across the terminals. When the bulb is exposed to ice, the circuit should open within 10 seconds. If the switch stays closed (showing continuity) while on ice, the thermostat is defective and requires replacement.
Can I adjust the ice level with this part?
Yes. While factory calibrated, you can adjust the bin level by raising or lowering the mounting bracket. For fine-tuning in high-altitude environments, the adjustment dial can be rotated counter-clockwise for "warmer" (less ice) or clockwise for "colder" (more ice).
What are the symptoms of a failed bin thermostat?
A failed "open" thermostat causes the control board to think the bin is full, preventing the machine from starting. A failed "closed" thermostat causes the machine to overfill the bin, eventually backing ice into the ice machine head.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
