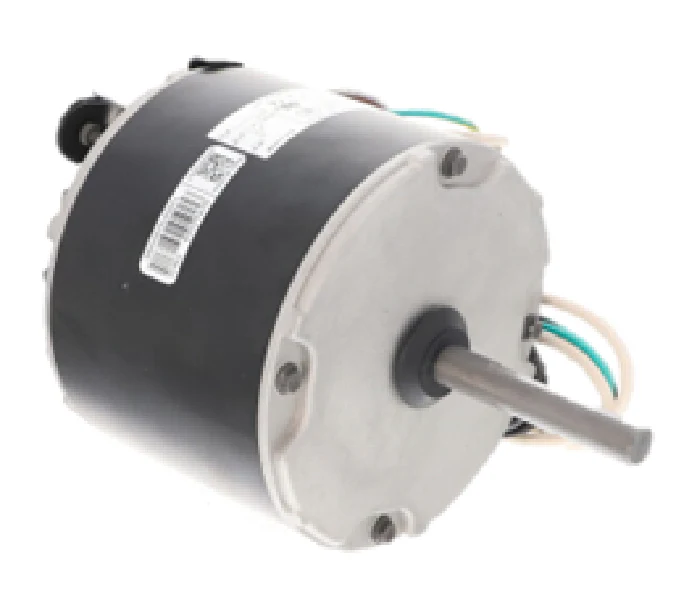

Manitowoc Ice 000003031 Motor
The Manitowoc Ice 000003031 Motor is a high-performance OEM replacement fan motor specifically engineered for Manitowoc remote condenser systems. Built as a Permanent Split Capacitor (PSC) motor, it operates at 208-230V with a power rating of 1/12HP and a consistent 1075RPM. This totally enclosed air over (TEAO) motor is designed to withstand the demanding environments of commercial refrigeration, ensuring optimal heat dissipation across the condenser coils. For technicians in the field, this motor is a direct drop-in for Manitowoc CVD3085, ID0872C, and RCU1098 units, maintaining factory-specified airflow to prevent high-head pressure trips (E04 error codes). Its sealed ball bearings and Class B insulation provide the durability required for 24/7 ice production cycles. When diagnosing ice machine fan motor failure, verifying the 0.57 Full Load Amps (FLA) is critical to ensuring long-term system stability and preventing compressor overheating.
Key Benefits- Genuine OEM Component: Ensures exact mechanical alignment and electrical compatibility with Manitowoc remote condensers.
- Efficient Heat Transfer: High-torque 1075RPM performance maintains critical airflow to prevent inconsistent ice harvesting.
- Rugged Construction: TEAO enclosure protects internal windings from moisture and debris in outdoor environments.
- Quiet Operation: Precision-balanced rotor reduces vibration, extending the life of the fan blade and motor brackets.
Which models are compatible with the 000003031 motor?
This motor is utilized in a wide range of Manitowoc series, including Indigo NXT, QuietQube, and various remote-cooled units like the IB0896YC, ID0876C, and CVD series.
What are the electrical requirements for installation?
The motor requires a 208-230V, 60Hz single-phase power supply. Always check your unit’s data plate and verify the capacitor requirements during a field swap.
How do I know if the condenser fan motor needs replacement?
Common indicators include loud metallic screeching (bearing failure), the motor housing being too hot to touch, or the machine triggering a high-pressure cutout due to insufficient airflow.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
