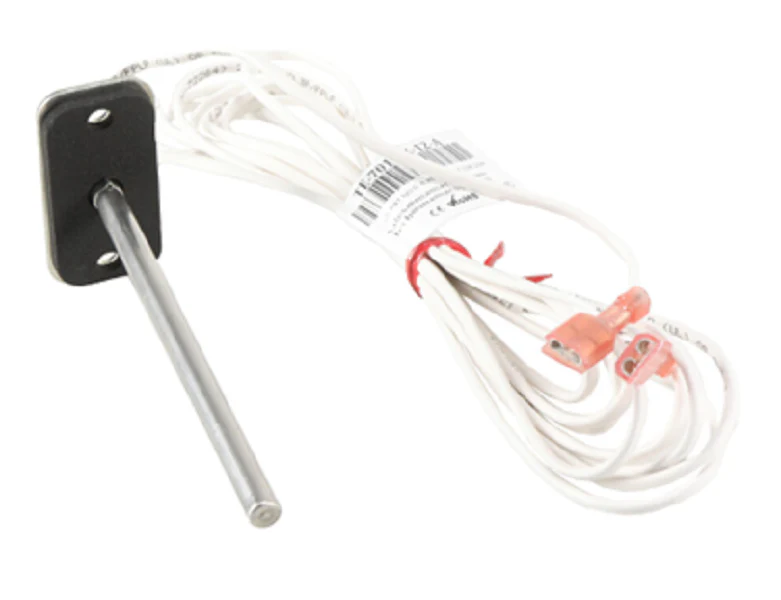

MAMAC Systems TE-701-BX-12-A Temperature Sensor
The MAMAC Systems TE-701-BX-12-A is a precision VAV discharge air temperature sensor designed for reliable performance in demanding commercial HVAC automation systems. This duct temperature sensor features a 10,000 Ohm NTC Thermistor (Type II), ensuring exceptional accuracy and stability for monitoring supply air within terminal units and VAV boxes. Built with a 4-inch 304 stainless steel immersion probe, the unit resists corrosion and mechanical stress in high-velocity airflow environments. The flange mount temperature sensor configuration allows for rapid, airtight installation on flat duct surfaces or plenum walls. Engineered for seamless integration with BAS (Building Automation Systems) and controllers from manufacturers such as Schneider Electric, Trane, and Johnson Controls, this sensor provides the high-resolution Resistance-Temperature (R-T) curve data necessary for precise PID loop control and energy-efficient climate management.
Key Benefits- Consistent Signal Accuracy: The 10k Type II thermistor delivers highly predictable resistance changes with minimal drift over the life of the sensor.
- Industrial Build Quality: Features a 4-inch stainless steel probe and a ruggedized BX enclosure for superior protection against moisture and physical damage.
- Simplified Mounting: The integrated flange mount design ensures a secure seal, preventing bypass air leakage that can skew temperature readings.
- Universal Compatibility: Standard NTC 10k Type 2 specifications make this an ideal drop-in replacement for a wide range of VAV and AHU control brands.
Is this sensor compatible with my existing DDC system?
The TE-701-BX-12-A utilizes a standard 10k Type II NTC thermistor, making it compatible with most major building automation controllers that accept a 10,000 Ohm @ 77°F (25°C) input curve.
How do I ensure a proper seal during installation?
The flange base should be mounted flush against the ductwork. We recommend using a closed-cell foam gasket or HVAC-grade sealant to prevent air bypass around the probe entry point.
Can the BX enclosure be used in outdoor applications?
While the BX enclosure provides excellent protection for indoor and mechanical room installations, we recommend using a NEMA 4 rated weather-shield for direct outdoor exposure to prevent moisture ingress into the wiring terminals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $12.42
-65%$12.42
$4.35MAMAC Systems TE-701-BX-12-A Temperature Sensor
The MAMAC Systems TE-701-BX-12-A is a precision VAV discharge air temperature sensor designed for reliable performance in demanding commercial HVAC automation systems. This duct temperature sensor features a 10,000 Ohm NTC Thermistor (Type II), ensuring exceptional accuracy and stability for monitoring supply air within terminal units and VAV boxes. Built with a 4-inch 304 stainless steel immersion probe, the unit resists corrosion and mechanical stress in high-velocity airflow environments. The flange mount temperature sensor configuration allows for rapid, airtight installation on flat duct surfaces or plenum walls. Engineered for seamless integration with BAS (Building Automation Systems) and controllers from manufacturers such as Schneider Electric, Trane, and Johnson Controls, this sensor provides the high-resolution Resistance-Temperature (R-T) curve data necessary for precise PID loop control and energy-efficient climate management.
Key Benefits- Consistent Signal Accuracy: The 10k Type II thermistor delivers highly predictable resistance changes with minimal drift over the life of the sensor.
- Industrial Build Quality: Features a 4-inch stainless steel probe and a ruggedized BX enclosure for superior protection against moisture and physical damage.
- Simplified Mounting: The integrated flange mount design ensures a secure seal, preventing bypass air leakage that can skew temperature readings.
- Universal Compatibility: Standard NTC 10k Type 2 specifications make this an ideal drop-in replacement for a wide range of VAV and AHU control brands.
Is this sensor compatible with my existing DDC system?
The TE-701-BX-12-A utilizes a standard 10k Type II NTC thermistor, making it compatible with most major building automation controllers that accept a 10,000 Ohm @ 77°F (25°C) input curve.
How do I ensure a proper seal during installation?
The flange base should be mounted flush against the ductwork. We recommend using a closed-cell foam gasket or HVAC-grade sealant to prevent air bypass around the probe entry point.
Can the BX enclosure be used in outdoor applications?
While the BX enclosure provides excellent protection for indoor and mechanical room installations, we recommend using a NEMA 4 rated weather-shield for direct outdoor exposure to prevent moisture ingress into the wiring terminals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
