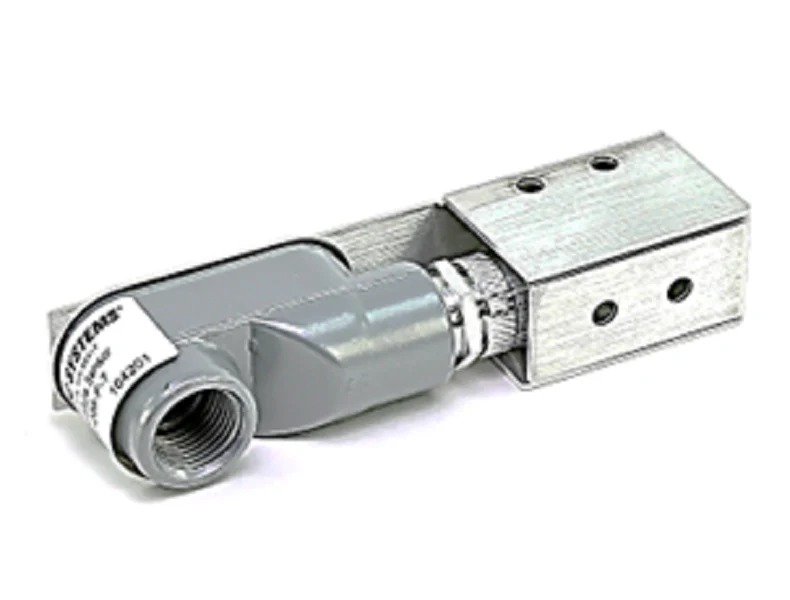

MAMAC Systems TE-205-F-7 Temperature Sensor
The MAMAC Systems TE-205-F-7 is a mission-critical outside air temperature sensor designed for integration with high-performance building automation systems. This unit utilizes a precision 10,000 Ohm NTC Thermistor (Type III), providing an industry-standard 10k Type 3 resistance curve for accurate environmental monitoring. To ensure a fast response time and long-term stability, the sensor element is hermetically sealed within a 304 stainless steel probe and housed in a rugged NEMA 4 (IP65) rated die-cast aluminum enclosure. This construction prevents modern HVAC issues like thermal shock, moisture ingress, and vibration from affecting sensor calibration. The 1/2” NPT threaded hub and liquid-tight cord connector isolate the sensor chamber from the building envelope, eliminating inaccurate readings caused by air leakage. This sensor is fully compatible with controllers from Schneider Electric, Carrier, Delta Controls, and Reliable Controls using the Type III thermistor curve.
Key Benefits- Rugged NEMA 4 Enclosure: Die-cast aluminum alloy housing provides superior protection against harsh outdoor environments.
- 10k Type III Thermistor: Universal compatibility with a wide range of BAS and DDC controllers including Delta, KMC, and Schneider.
- Hermetic Seal: Stainless steel probe design resists failure from high humidity and contamination.
- Integrated Sun Shield: Protects the sensing element from solar radiation bias for more accurate ambient air data.
- Ease of Installation: Standard 1/2” NPT hub allows for direct mounting to conduit or outdoor enclosures without specialized adapters.
Is the TE-205-F-7 compatible with 10k Type II systems?
No, this unit is specifically calibrated for the Type III thermistor curve. For 10k Type II (CP curve) applications commonly found in Trane or JCI systems, a different sensor model is required.
Can this sensor be used for immersion applications?
While the TE-205 series includes immersion versions, the TE-205-F-7 is configured specifically as an outside air sensor with a weather-shielded enclosure. For pipe or well mounting, refer to the immersion-specific models in the MAMAC catalog.
What is the operating range for this sensor?
The thermistor itself is rated for a wide range, typically -40°F to 210°F, making it suitable for all climatological conditions encountered in North American building automation deployments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $18.64
-65%$18.64
$6.52MAMAC Systems TE-205-F-7 Temperature Sensor
The MAMAC Systems TE-205-F-7 is a mission-critical outside air temperature sensor designed for integration with high-performance building automation systems. This unit utilizes a precision 10,000 Ohm NTC Thermistor (Type III), providing an industry-standard 10k Type 3 resistance curve for accurate environmental monitoring. To ensure a fast response time and long-term stability, the sensor element is hermetically sealed within a 304 stainless steel probe and housed in a rugged NEMA 4 (IP65) rated die-cast aluminum enclosure. This construction prevents modern HVAC issues like thermal shock, moisture ingress, and vibration from affecting sensor calibration. The 1/2” NPT threaded hub and liquid-tight cord connector isolate the sensor chamber from the building envelope, eliminating inaccurate readings caused by air leakage. This sensor is fully compatible with controllers from Schneider Electric, Carrier, Delta Controls, and Reliable Controls using the Type III thermistor curve.
Key Benefits- Rugged NEMA 4 Enclosure: Die-cast aluminum alloy housing provides superior protection against harsh outdoor environments.
- 10k Type III Thermistor: Universal compatibility with a wide range of BAS and DDC controllers including Delta, KMC, and Schneider.
- Hermetic Seal: Stainless steel probe design resists failure from high humidity and contamination.
- Integrated Sun Shield: Protects the sensing element from solar radiation bias for more accurate ambient air data.
- Ease of Installation: Standard 1/2” NPT hub allows for direct mounting to conduit or outdoor enclosures without specialized adapters.
Is the TE-205-F-7 compatible with 10k Type II systems?
No, this unit is specifically calibrated for the Type III thermistor curve. For 10k Type II (CP curve) applications commonly found in Trane or JCI systems, a different sensor model is required.
Can this sensor be used for immersion applications?
While the TE-205 series includes immersion versions, the TE-205-F-7 is configured specifically as an outside air sensor with a weather-shielded enclosure. For pipe or well mounting, refer to the immersion-specific models in the MAMAC catalog.
What is the operating range for this sensor?
The thermistor itself is rated for a wide range, typically -40°F to 210°F, making it suitable for all climatological conditions encountered in North American building automation deployments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
