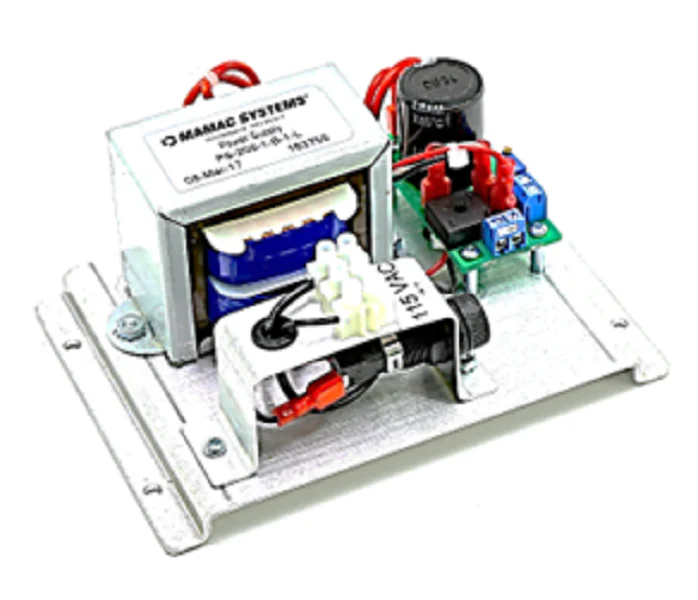

MAMAC Systems PS-200-1-B-1-L Power Supply
The MAMAC Systems PS-200-1-B-1-L is a rugged, linear DC power supply engineered for demanding building automation and industrial control environments. This 115VAC to 24VDC converter delivers a consistent 3.0 Amps of filtered, regulated power, ensuring stable operation for sensitive control peripherals and sensors. Built with a split bobbin transformer providing 3500 VRMS isolation, the PS-200 excels at mitigating electrical noise, maintaining a ripple of less than 2.0 mV peak-to-peak. This low height chassis power supply is specifically designed for shallow control panels, where flush mounting is critical. It features integrated short circuit protection and thermal overload safeguards that allow the unit to go into a dormant state under fault conditions, resuming operation automatically once the load is corrected. With a multi-turn trimmer for precise adjustable output voltage and a high-access inline fuse, this unit provides the reliability required for 24/7 HVACR infrastructure.
Key Benefits- Panel Space Efficiency: The low-profile chassis functions as an integrated heat sink, allowing for flush mounting in shallow enclosures without the need for stand-offs.
- Superior Noise Suppression: Ultra-low ripple design and isolation protect sensitive microprocessor-based controllers from line spikes and electromagnetic interference.
- Hardware Protection: Internal thermal overload protection and replaceable 3AG industry-standard fuses safeguard the primary and secondary circuits.
- Installation Flexibility: Dual multi-position terminal strips simplify field wiring for primary line voltage and secondary DC distribution.
- Can this power supply handle inductive loads like relays or actuators? Yes, the 3.0 Amp rating and inrush protection make it suitable for driving multiple BAS relays and low-voltage actuators.
- Is the voltage fixed or can I tune it for long wire runs? The output is fully adjustable from 5.0 to 25.0 VDC via a multi-turn trimmer to compensate for voltage drops in extensive field wiring.
- What happens if there is a direct short on the output? The unit is designed to withstand an indefinite short circuit without damage; it will simply shut down until the short is removed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $70.56
-65%$70.56
$24.70MAMAC Systems PS-200-1-B-1-L Power Supply
The MAMAC Systems PS-200-1-B-1-L is a rugged, linear DC power supply engineered for demanding building automation and industrial control environments. This 115VAC to 24VDC converter delivers a consistent 3.0 Amps of filtered, regulated power, ensuring stable operation for sensitive control peripherals and sensors. Built with a split bobbin transformer providing 3500 VRMS isolation, the PS-200 excels at mitigating electrical noise, maintaining a ripple of less than 2.0 mV peak-to-peak. This low height chassis power supply is specifically designed for shallow control panels, where flush mounting is critical. It features integrated short circuit protection and thermal overload safeguards that allow the unit to go into a dormant state under fault conditions, resuming operation automatically once the load is corrected. With a multi-turn trimmer for precise adjustable output voltage and a high-access inline fuse, this unit provides the reliability required for 24/7 HVACR infrastructure.
Key Benefits- Panel Space Efficiency: The low-profile chassis functions as an integrated heat sink, allowing for flush mounting in shallow enclosures without the need for stand-offs.
- Superior Noise Suppression: Ultra-low ripple design and isolation protect sensitive microprocessor-based controllers from line spikes and electromagnetic interference.
- Hardware Protection: Internal thermal overload protection and replaceable 3AG industry-standard fuses safeguard the primary and secondary circuits.
- Installation Flexibility: Dual multi-position terminal strips simplify field wiring for primary line voltage and secondary DC distribution.
- Can this power supply handle inductive loads like relays or actuators? Yes, the 3.0 Amp rating and inrush protection make it suitable for driving multiple BAS relays and low-voltage actuators.
- Is the voltage fixed or can I tune it for long wire runs? The output is fully adjustable from 5.0 to 25.0 VDC via a multi-turn trimmer to compensate for voltage drops in extensive field wiring.
- What happens if there is a direct short on the output? The unit is designed to withstand an indefinite short circuit without damage; it will simply shut down until the short is removed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The MAMAC Systems PS-200-1-B-1-L is a rugged, linear DC power supply engineered for demanding building automation and industrial control environments. This 115VAC to 24VDC converter delivers a consistent 3.0 Amps of filtered, regulated power, ensuring stable operation for sensitive control peripherals and sensors. Built with a split bobbin transformer providing 3500 VRMS isolation, the PS-200 excels at mitigating electrical noise, maintaining a ripple of less than 2.0 mV peak-to-peak. This low height chassis power supply is specifically designed for shallow control panels, where flush mounting is critical. It features integrated short circuit protection and thermal overload safeguards that allow the unit to go into a dormant state under fault conditions, resuming operation automatically once the load is corrected. With a multi-turn trimmer for precise adjustable output voltage and a high-access inline fuse, this unit provides the reliability required for 24/7 HVACR infrastructure.
Key Benefits- Panel Space Efficiency: The low-profile chassis functions as an integrated heat sink, allowing for flush mounting in shallow enclosures without the need for stand-offs.
- Superior Noise Suppression: Ultra-low ripple design and isolation protect sensitive microprocessor-based controllers from line spikes and electromagnetic interference.
- Hardware Protection: Internal thermal overload protection and replaceable 3AG industry-standard fuses safeguard the primary and secondary circuits.
- Installation Flexibility: Dual multi-position terminal strips simplify field wiring for primary line voltage and secondary DC distribution.
- Can this power supply handle inductive loads like relays or actuators? Yes, the 3.0 Amp rating and inrush protection make it suitable for driving multiple BAS relays and low-voltage actuators.
- Is the voltage fixed or can I tune it for long wire runs? The output is fully adjustable from 5.0 to 25.0 VDC via a multi-turn trimmer to compensate for voltage drops in extensive field wiring.
- What happens if there is a direct short on the output? The unit is designed to withstand an indefinite short circuit without damage; it will simply shut down until the short is removed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
