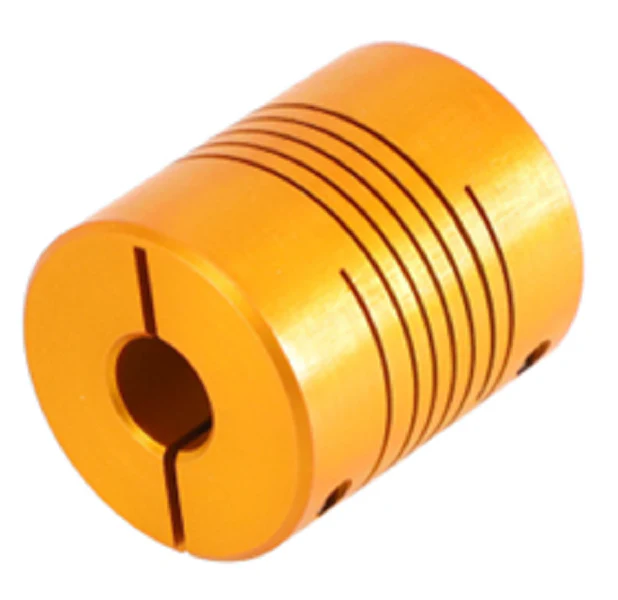

Lovejoy 68514456632 Coupling Clamp
The Lovejoy 68514456632 is a precision-engineered EC075-BEAM-CP-1/4X1/4 single beam clamp-style coupling designed for high-performance motion control and light power transmission. Constructed from a single piece of anodized aluminum, this beam flexible coupling utilizes a helical coil design to provide zero backlash while successfully accommodating angular, parallel, and axial misalignment. Its 1/4" x 1/4" bore size and 0.748-inch outside diameter make it an ideal choice for compact HVACR control systems, encoders, and precision positioning tasks where maintaining shaft synchronization is critical.
Rated for speeds up to 10,000 RPM and a torque capacity of 5 in-lb, this aluminum beam coupling excels in start-stop-reverse applications. The clamp style hub ensures a secure, non-marring connection to the shaft, distributing pressure evenly to prevent slipping without the need for keyways. This all-metal component is built to withstand operating temperatures up to 200°F, providing superior resistance to chemicals and heat compared to standard elastomeric spiders. For contractors, the one-piece Lovejoy coupling clamp simplifies installation and maintains system integrity in demanding environments.
Key Benefits:- Zero Backlash Performance: The helical beam design ensures exact shaft positioning for high-precision motion control applications.
- Misalignment Compensation: Capable of handling up to 5 degrees of angular misalignment, reducing stress on connected bearings and seals.
- Durable Anodized Aluminum: Provides high corrosion resistance and thermal stability in environments reaching 200°F.
- Secure Clamp Hub: Features a clamping set screw design that offers maximum holding power on 1/4-inch shafts without damaging the surface.
- High-Speed Stability: Dynamically balanced for operations up to 10,000 RPM, ensuring smooth power transmission with minimal vibration.
Can this coupling be used in reversing applications?
Yes. The single-piece flexible beam coupling operates effectively in both clockwise and counter-clockwise directions without sacrificing torque capacity or introducing windup, making it perfect for frequent start-stop cycles.
What is the maximum torque rating for this 1/4" x 1/4" clamp?
This specific EC series model is rated for a static torque of 5 in-lb. Exceeding this limit may lead to permanent deformation of the helical coil.
Is a keyway required for installation?
No. The clamp style hub provides sufficient friction for its rated torque capacity without the need for a keyway, which helps preserve the integrity of small-diameter shafts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $139.48
-65%$139.48
$48.82Lovejoy 68514456632 Coupling Clamp
