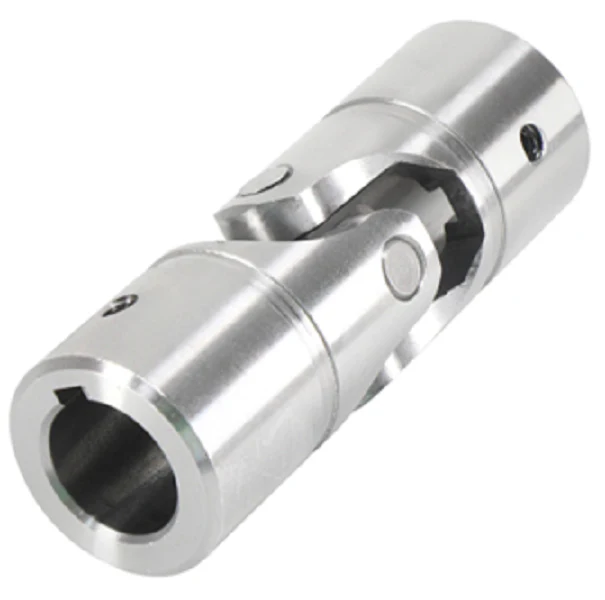

Lovejoy 68514445151 Joint
The Lovejoy 68514445151 is a high-performance D-type universal joint engineered for demanding power transmission in HVACR and industrial mechanical systems. This D-8B size component features a precision-machined 3/4 inch bore with a standard 3/16 x 3/32 inch keyway and set screw for a secure, non-slip shaft connection. Constructed from high-grade alloy steel, this single joint utilizes a robust pin and block design to handle a static breaking torque of up to 5,220 in-lb. Built to accommodate angular misalignment up to 25 degrees, it supports operational speeds reaching 1,750 RPM, making it an ideal choice for blower motor shafts, pump drives, and fan assemblies where direct alignment is unattainable. The yoke is specifically shaped to maximize strength while allowing a full, free range of motion. For technicians servicing mission-critical equipment, this Lovejoy D-8B 3/4" bore joint provides the reliability needed for continuous mechanical operation. To ensure long-term performance, we recommend using protective boots and consistent lubrication to mitigate friction and wear on the internal pins.
Key Benefits- High Torque Capacity: Rated for a 5,220 in-lb static breaking torque, providing heavy-duty performance under varying loads.
- Optimized Misalignment: Efficiently handles shaft angle offset up to 25 degrees without sacrificing rotational efficiency.
- Precision Bore Fitting: Features a 3/4" finished bore with an integrated 3/16" keyway and set screw for straightforward contractor installation.
- Durable Steel Construction: Manufactured from alloy steel with a specialized yoke design for maximum structural integrity at high speeds.
- Enhanced Service Life: Features standard boot retaining grooves for easy integration of protective covers to keep contaminants out.
What is the maximum RPM for this Lovejoy D-8B joint?
This model is rated for a maximum speed of 1,750 RPM. For applications requiring higher velocities, you may need to consider a needle bearing variant specifically designed for higher speeds.
Does this universal joint facilitate parallel misalignment?
As a single universal joint, it primarily manages angular misalignment. To compensate for parallel shaft offset, professionals typically utilize a double-joint arrangement (DD Type).
How do I maintain the pin and block interface?
Regular lubrication is essential. We recommend using a non-black, smooth NLGI Grade 2 grease. Installing a universal joint boot is the best practice to retain lubricant and extend the component’s operational lifespan.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
