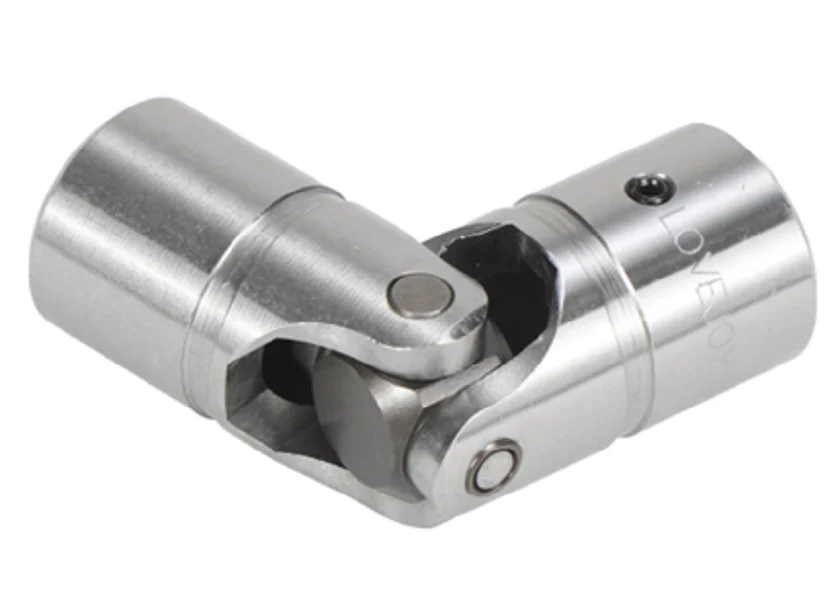

Lovejoy 68514444286Joint
The Lovejoy 68514444286 is a heavy-duty D Type universal joint engineered for high-performance power transmission in HVACR and industrial machinery. Featuring a 5/8 inch bore with a standard pin and block design, this component is built from carbon steel to withstand demanding operational environments. This D7B size coupling supports a static breaking torque of up to 2,880 in-lb and is optimized for equipment operating at speeds up to 1,750 RPM with a maximum operating angle of 25 degrees.
For technicians performing field replacements, the pin and block universal joint includes integrated boot retaining grooves as a standard feature. To ensure maximum component longevity and reduce frictional wear, we recommend the application of compatible 102145069 series boots and regular lubrication. The finished bore construction allows for direct installation onto 5/8-inch shafts, providing a secure fit for critical drive systems where misalignment compensation is required.
Key Benefits:- Durable Carbon Steel Construction: Precision-machined for superior strength and resistance to mechanical fatigue.
- High Torque Capacity: Rated for a 2,880 in-lb static breaking torque, making it suitable for rigorous drive applications.
- Optimized Operating Envelope: Capable of handling 25-degree misalignment and rotational speeds of 1,750 RPM.
- Maintenance Ready: Includes pre-machined grooves for universal joint boot installation to protect against contaminants.
- Industry Standard Sizing: The D7B coupling size ensures seamless compatibility with various HVAC and industrial power transmission setups.
What is the maximum torque rating for the Lovejoy 68514444286?
This D7B U-joint is rated for a static breaking torque of 2,880 in-lb. Note that operating torque should be calculated based on your specific RPM and application service factors.
Does this 5/8 inch bore joint require lubrication?
Yes, for optimal wear and service life, regular lubrication of the pin and block assembly is necessary. Using a boot is highly recommended to retain grease and prevent debris ingress.
Can this universal joint handle speeds higher than 1,750 RPM?
Standard pin and block designs are rated up to 1,750 RPM. For higher speed requirements, a needle bearing type joint should be considered to prevent overheating and premature failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
