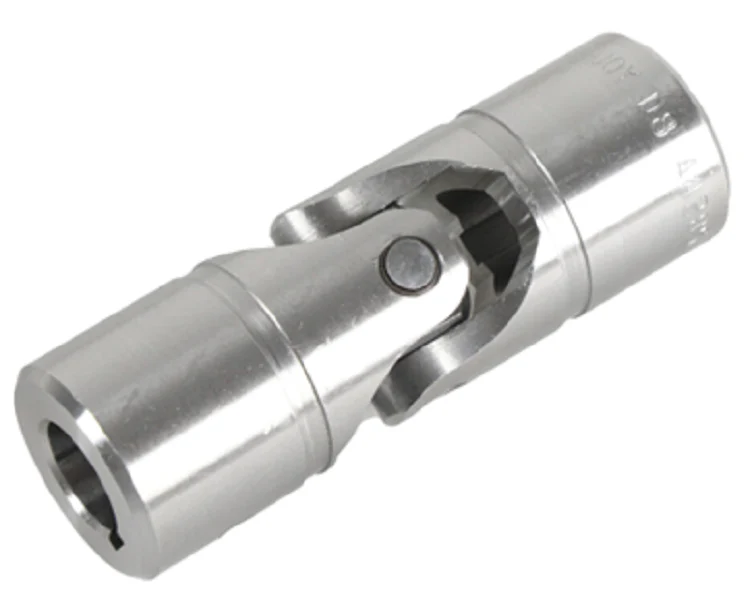

Lovejoy 68514444285 Joint
The Lovejoy 68514444285 is a high-performance D-8B industrial universal joint engineered for demanding power transmission tasks where shaft misalignment is a factor. Constructed from high-grade alloy steel, this pin and block universal joint features 5/8-inch finished bores with a 3/16 x 3/32 keyway and 1/4-20 set screws for a secure, slip-free connection. Designed to handle static breaking torque up to 5,220 in-lb, it provides a reliable linkage for compressors, pumps, and mechanical drives operating at speeds up to 1750 RPM. The Lovejoy D Type architecture supports an operating angle of up to 25 degrees, making it critical for maintaining torque across non-coaxial shafts. To ensure maximum component life in harsh environments, this 3.75-inch long joint includes boot retaining grooves as standard, allowing for the easy addition of protective covers to retain lubrication and exclude contaminants. This Lovejoy D8B unit is an industry-standard replacement part for field technicians requiring precision and durability in heavy-duty HVACR and industrial applications.
Key Benefits- Precision Machined Bores: Features 5/8-inch bored ends with integrated keyways and set screws for rapid, secure installation on standard shafts.
- High Torque Capacity: Rated for a static torque of 5,220 in-lb, providing the strength needed for industrial-scale mechanical loads.
- Angular Flexibility: Efficiently maintains power transmission at misalignment angles up to 25 degrees, reducing vibration and stress on connected equipment.
- Standardized Fit: The D8B size ensures compatibility with a wide range of OEM machinery, simplifying field replacements and inventory management.
- Enhanced Protection: Built-in boot retaining grooves facilitate the use of protective boots to safeguard the pin and block interface from debris.
What is the maximum RPM for this universal joint?
The Lovejoy 68514444285 is rated for a maximum speed of 1750 RPM. For applications exceeding this speed, specialized needle bearing joints should be considered.
Does this joint require regular lubrication?
Yes, for optimal performance and to prevent premature wear, pin and block universal joints require regular lubrication. Utilizing protective boots can help retain grease and extend maintenance intervals.
Can this handle parallel misalignment?
A single universal joint is designed primarily for angular misalignment. For parallel offset, a double universal joint configuration or a mid-shaft assembly is typically required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $174.07
-65%$174.07
$60.92Lovejoy 68514444285 Joint
