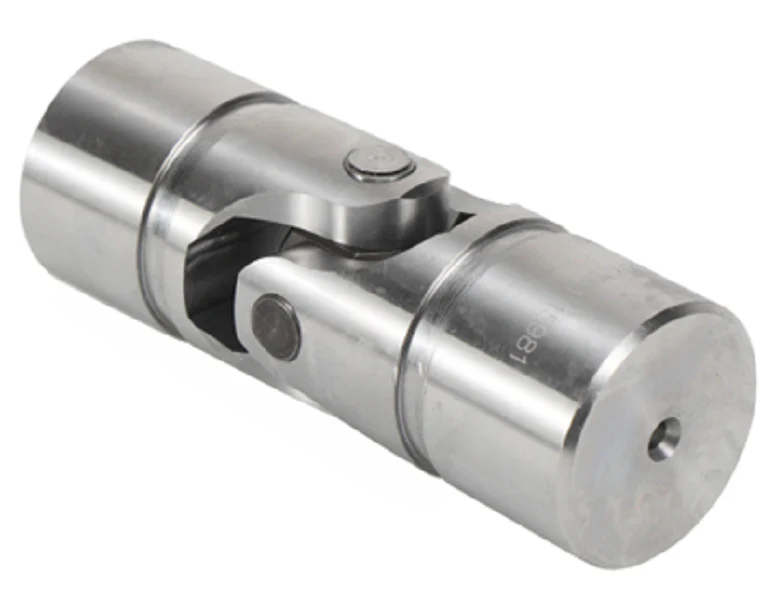

Lovejoy 68514415981 Solid U Joint
For high-torque industrial and HVAC applications requiring precise power transmission, the Lovejoy 68514415981 D-11 series universal joint provides a rugged, dependable solution. This solid bore universal joint is engineered from high-grade steel, featuring a classic pin and block design that maximizes durability under heavy loads. With a static torque rating of 10,680 in-lb, it is built to handle the rigorous demands of mechanical drive systems while maintaining operational integrity. The D-type single universal joint accommodates an angular misalignment of up to 25 degrees at speeds reaching 1,750 RPM, ensuring smooth rotation even in non-linear configurations. Its 1.25-inch bore diameter and 5-inch overall length make it a standard fit for many commercial HVACR and industrial motor shafts. To ensure prolonged service life and reduce friction-induced wear, technicians should utilize boot retaining grooves for lubricant retention. This unbored, solid-bore component allows for custom machining to meet your specific shaft keyway or setscrew requirements on-site.
Key Benefits- High Torque Capacity: Rated for up to 10,680 in-lb, making it suitable for heavy-duty industrial power transmission.
- Precision Misalignment Handling: Corrects for up to 25 degrees of angular offset without sacrificing rotational speed.
- Industrial Grade Steel: Constructed from robust metallic steel for resistance to mechanical fatigue in demanding environments.
- Customizable Solid Bore: The unbored D11 size allows for precision field machining to match exact shaft specifications.
- Serviceable Design: Built-in grooves facilitate the use of protective boots to keep contaminants out and lubrication in.
What is the maximum operating speed for the Lovejoy D-11 U-joint?
This industrial U-joint is rated for a maximum speed of 1,750 RPM when used within the allowable 25-degree misalignment angle.
Does this part require lubrication for standard operation?
Yes, for optimal wear life in mechanical power transmission, consistent lubrication is required. Using a protective boot is highly recommended to retain grease.
Can I use this universal joint in high-temperature environments?
This steel joint is built for standard industrial ranges, typically performing reliably between -30°F and +212°F depending on the lubricant and boot material used.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $266.92
-65%$266.92
$93.42Lovejoy 68514415981 Solid U Joint
For high-torque industrial and HVAC applications requiring precise power transmission, the Lovejoy 68514415981 D-11 series universal joint provides a rugged, dependable solution. This solid bore universal joint is engineered from high-grade steel, featuring a classic pin and block design that maximizes durability under heavy loads. With a static torque rating of 10,680 in-lb, it is built to handle the rigorous demands of mechanical drive systems while maintaining operational integrity. The D-type single universal joint accommodates an angular misalignment of up to 25 degrees at speeds reaching 1,750 RPM, ensuring smooth rotation even in non-linear configurations. Its 1.25-inch bore diameter and 5-inch overall length make it a standard fit for many commercial HVACR and industrial motor shafts. To ensure prolonged service life and reduce friction-induced wear, technicians should utilize boot retaining grooves for lubricant retention. This unbored, solid-bore component allows for custom machining to meet your specific shaft keyway or setscrew requirements on-site.
Key Benefits- High Torque Capacity: Rated for up to 10,680 in-lb, making it suitable for heavy-duty industrial power transmission.
- Precision Misalignment Handling: Corrects for up to 25 degrees of angular offset without sacrificing rotational speed.
- Industrial Grade Steel: Constructed from robust metallic steel for resistance to mechanical fatigue in demanding environments.
- Customizable Solid Bore: The unbored D11 size allows for precision field machining to match exact shaft specifications.
- Serviceable Design: Built-in grooves facilitate the use of protective boots to keep contaminants out and lubrication in.
What is the maximum operating speed for the Lovejoy D-11 U-joint?
This industrial U-joint is rated for a maximum speed of 1,750 RPM when used within the allowable 25-degree misalignment angle.
Does this part require lubrication for standard operation?
Yes, for optimal wear life in mechanical power transmission, consistent lubrication is required. Using a protective boot is highly recommended to retain grease.
Can I use this universal joint in high-temperature environments?
This steel joint is built for standard industrial ranges, typically performing reliably between -30°F and +212°F depending on the lubricant and boot material used.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
