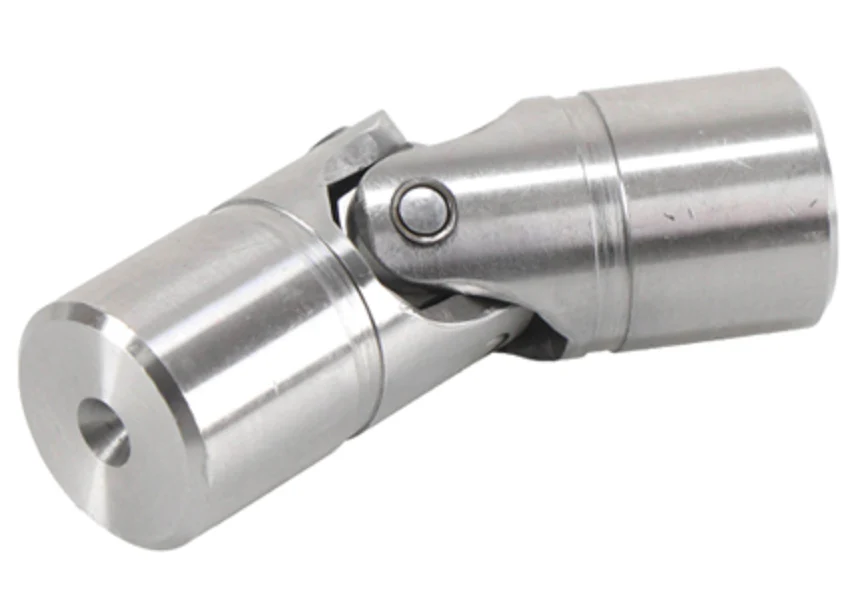

Lovejoy 68514415841 Universal Joint
The Lovejoy 68514415841 is a D7 Type steel metallic universal joint engineered for high-performance power transmission in HVACR and industrial drive systems. Utilizing a solid unbored configuration, this pin and block universal joint provides technicians with a blank canvas for custom machining to meet specific shaft requirements. With a 1.12-inch outside diameter and a 3.50-inch overall length, this component is designed for moderate torque transmission, delivering a static torque rating of 2,880 in-lb. This industrial coupling manages up to 25-degree maximum angle offset and operates efficiently at speeds reaching 1,750 RPM. The precision-machined yoke shape ensures high strength and free movement, making it a reliable choice for mechanical power transmission in pumps, fans, and compressors. For field longevity, the Lovejoy D7 features standard boot retaining grooves to facilitate the installation of protective covers, ensuring consistent performance in temperatures ranging from -30 to 212 degrees Fahrenheit.
Key Benefits
- High Torsional Stiffness: The pin and block design ensures minimal backlash and precise motion control under load.
- Custom Fitment: The solid bore (unbored) design allows contractors to machine precise tolerances for unique shaft diameters.
- Operating Flexibility: Capable of handling angular misalignment up to 25 degrees, accommodating variations in equipment geometry.
- Enhanced Durability: Constructed from high-grade alloy steel for superior wear resistance in heavy-duty HVACR applications.
- Integrated Boot Grooves: Machined grooves simplify the addition of universal joint boots to retain lubricant and block contaminants.
Common Questions
What is the maximum operating speed for the D7 universal joint?
The Lovejoy 68514415841 is rated for a maximum speed of 1,750 RPM, making it suitable for most standard motor-driven industrial applications.
Can I use this universal joint for parallel misalignment?
Single universal joints are designed for angular misalignment. To correct for parallel misalignment, a double universal joint or two single joints with a connecting shaft should be utilized.
Does this part require regular maintenance?
Yes, for optimal service life, this steel universal joint requires regular lubrication. Using a protective boot is highly recommended to extend the life of the pin and block interface by preventing grease washout.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
