Lovejoy 68514415809 Solid U Joint

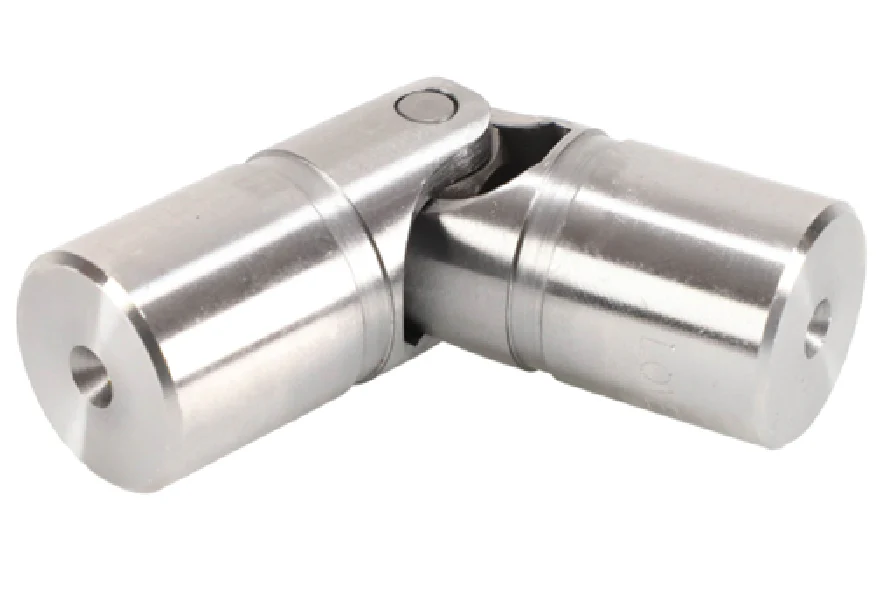

The Lovejoy 68514415809 is a high-performance D Type Universal Joint engineered for industrial power transmission and HVACR equipment. Featuring a solid bore design, this pin and block universal joint is constructed from high-strength steel to handle rigorous mechanical loads. It offers a static breaking torque of 1,560 in-lbs and is rated for operating speeds up to 1,750 RPM, making it a reliable solution for managing angular misalignment up to 25 degrees. The unit measures 3.38 inches in overall length with a 1.00-inch outside diameter, providing a compact footprint for tight mechanical spaces. Technicians will find the integrated boot retaining grooves standard across the D-6 size code, facilitating the addition of protective covers to preserve lubricant and prevent debris ingress. This Lovejoy universal joint is unbored, allowing for custom machining to meet specific shaft requirements in the field, ensuring maximum compatibility with various drive systems.
- High Torque Capacity: Rated for a 1,560 in-lb static breaking torque to maintain drive integrity under load.
- Misalignment Compensation: Facilitates smooth power transfer at angles up to 25 degrees, reducing stress on connected shafts.
- Rugged Steel Construction: Durable pin and block architecture designed for long-term reliability in industrial environments.
- Customizable Solid Bore: Unbored style allows contractors to machine precise fits for unique HVACR or mechanical applications.
- Standardized Fitment: Cross-referenced as a D-6 model with standard 1" OD for easy integration into existing power trains.
Common Questions
What is the maximum operating speed for this universal joint?
The D-6 series is designed to operate efficiently at speeds up to 1,750 RPM, provided the angle and speed combinations remain within the manufacturer's performance curves.
Is lubrication required for the Lovejoy 68514415809?
Yes, for optimal performance and to minimize friction wear, regular lubrication is necessary. Utilizing a boot kit is recommended to retain grease and extend the service life of the pin and block components.
Can this joint be used for both parallel and angular misalignment?
This single universal joint is specifically designed for angular misalignment. For applications requiring parallel misalignment compensation, a double joint (such as the DD type) should be utilized.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
