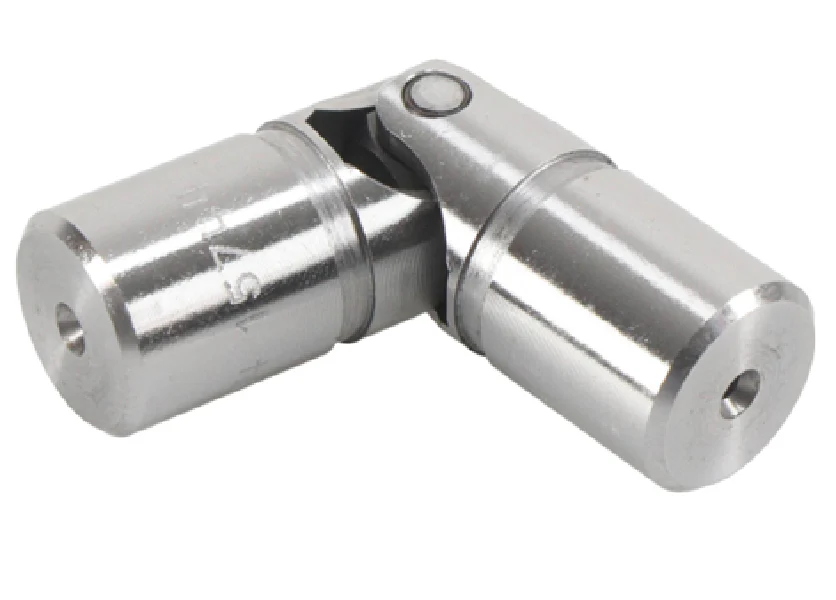

Lovejoy 68514415744 Solid U Joint
For demanding power transmission in industrial HVACR systems, the Lovejoy 68514415744 Solid U Joint (Size D4) provides a rugged pin and block design tailored for precision and durability. Manufactured from high-grade steel, this D-Type single universal joint is engineered to manage angular misalignment up to 25 degrees, making it a reliable choice for connecting offset rotating shafts in compressors, fans, and textile machinery. With a static breaking torque of 768 in-lb and a maximum operational threshold of 1750 RPM, it maintains a uniform speed ratio between driving and driven components. The solid hubs feature centering holes, allowing technicians to perform custom machining to meet specific shaft requirements. To ensure long-term performance under continuous load, this bored steel universal joint includes standard boot retaining grooves. Integrating these with protective boots and proper lubrication is essential for minimizing friction and preventing premature wear in high-cycle thermal environments.
Key Benefits
- Precision Machinability: Solid hub configuration with centering holes allows for custom boring to match non-standard shaft diameters.
- High Torque Capacity: Robust steel construction supports a static torque rating of 768 in-lb for industrial-grade power transmission.
- Misalignment Tolerance: Effectively compensates for up to 25° of angular shaft offset without sacrificing rotational stability.
- Extended Service Life: Features integrated grooves for boot attachment, shielding the pin and block from contaminants when properly lubricated.
- Standardized Performance: Operates reliably at speeds up to 1750 RPM, fitting most standard motor and gearbox configurations.
Common Questions
Can I use this universal joint for high-speed precision applications?
While the D-Type pin and block design is excellent for high torque and moderate speeds up to 1750 RPM, applications requiring higher velocities should consider needle bearing alternatives to manage heat and friction.
Is lubrication required if the joint is not under a heavy load?
Yes, proper lubrication—ideally with Lithium EP-2 grease—is necessary for all Lovejoy D-Type joints to prevent metal-on-metal galling and ensure the longevity of the pin and block assembly.
How do I determine if the D4 size is sufficient for my drive system?
Calculate your required torque by multiplying the application horsepower by the service factor and dividing by the RPM. Ensure your operating torque remains well below the static breaking torque of 768 in-lb.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
